Relay

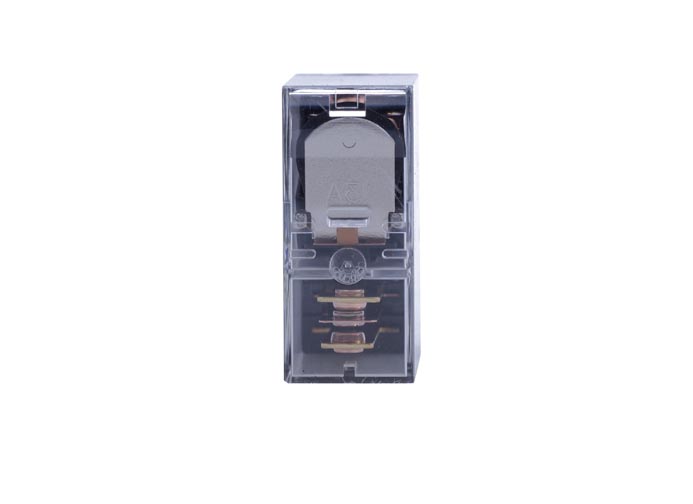

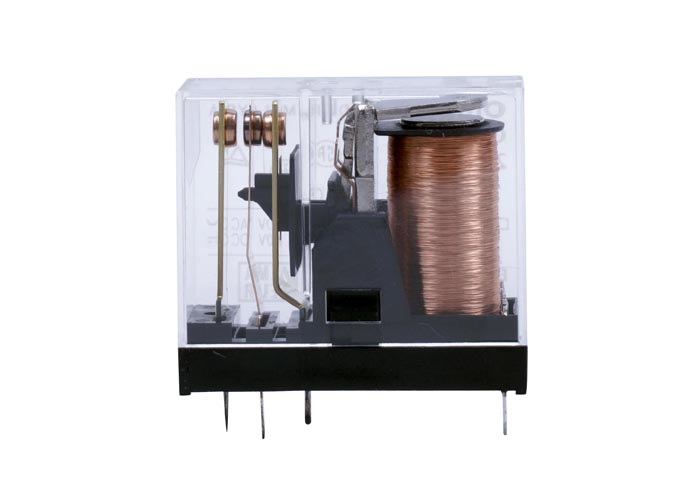

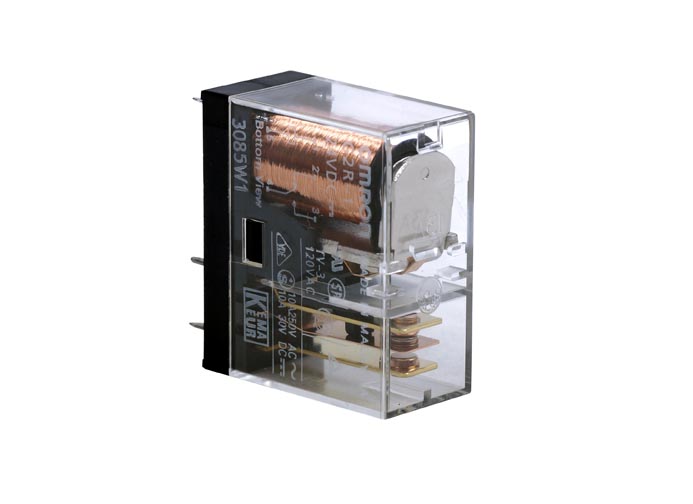

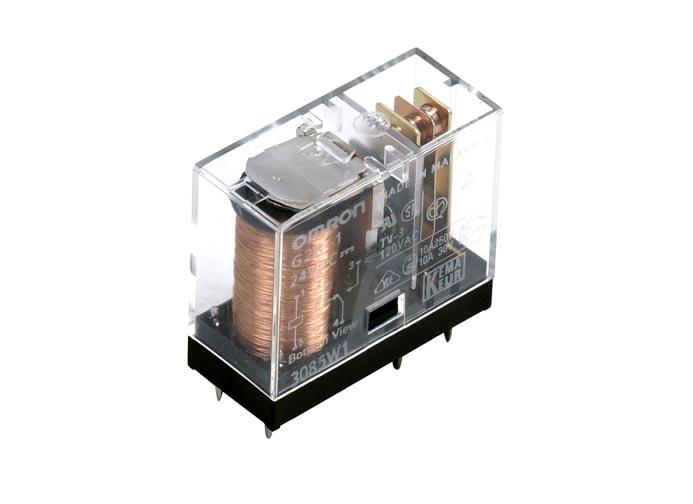

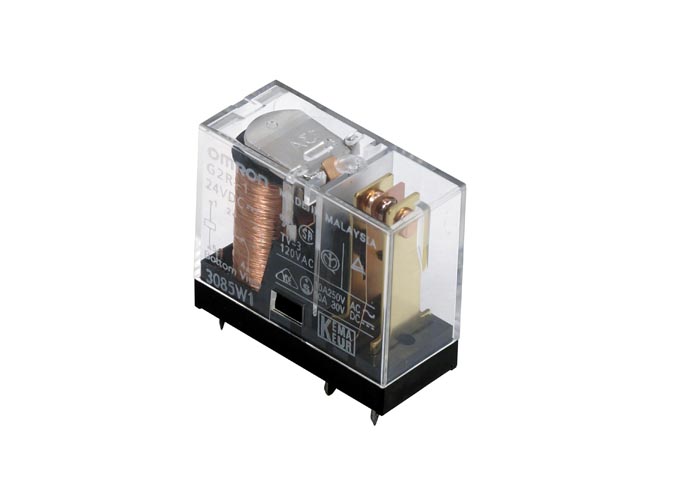

G2R-1-DC24
G2R
G2R-PCB Power Relay Series
General purpose power Relays of single-pole10 A and double-pole 5 A
Safety-oriented design with dielectric strength of 5,000 V between coil and contacts.
Specification
| Item | Specification |
| Model Type: | Omron G2R-1-24VDC |
| Contact Form: | 1c (SPDT) |
| Number of poles: | 1 pole |
| Rated Coil Voltage: | DC 24V |
| Coil Resistance: | 1100 Ω |
| Power Comsumption: | Approx. 0.53 |
| Resistive Load: | 16 A at 250 VAC, 16 A at 30 VDC |
| Inductive Load: | 8 A at 250 VAC, 8 A at 30 VDC |
| Max. Switching Voltage: | 380 VAC, 125 VDC |
| Max. Switching Current: | 10 A |
| Mechanical Max. Operating Frequency: | 18,000 operations/hr |
| Electrical Max. Operating Frequency: | 1,800 operations/hr |
| Insulation Resistance: | 1,000 MΩ min. |
| Dielectric Strength (Between coil and contacts): | 5,000 VAC, 50/60 Hz for 1 min. |
| Dielectric Strength (Between contacts of the same polarity): | 1,000 VAC, 50/60 Hz for 1 min. |
| Vibration Resistance (Destruction): | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Vibration Resistance (Malfunction): | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock Resistance (Destruction): | 1,000 m/s2 |
| Shock Resistance (Malfunction): | 200 m/s2 when energized; 100m/s2 when no energized |
| Mechanical Durability: | AC coil: 10,000,000 operations min.; DC coil: 20,000,000 operations min. (at 18,000 operations/hr) |
| Electrica Durability: | 100,000 operations min. (at 1,800 operations/hr under rated load) |
| Ambient Operating Temperature: | -40°C to 70°C (with no icing) |
