Relay

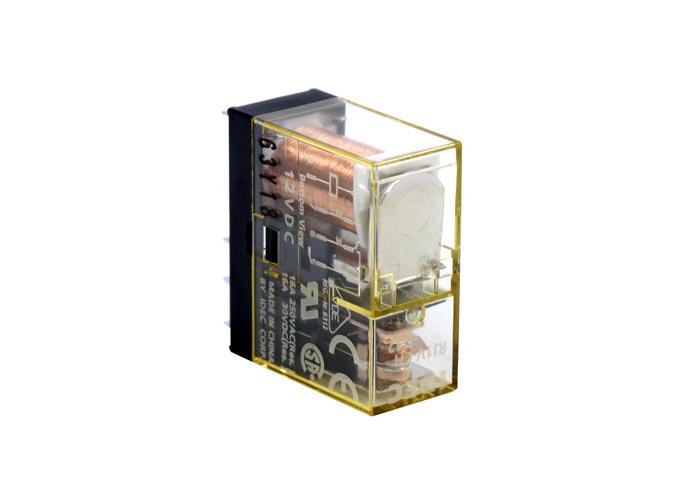

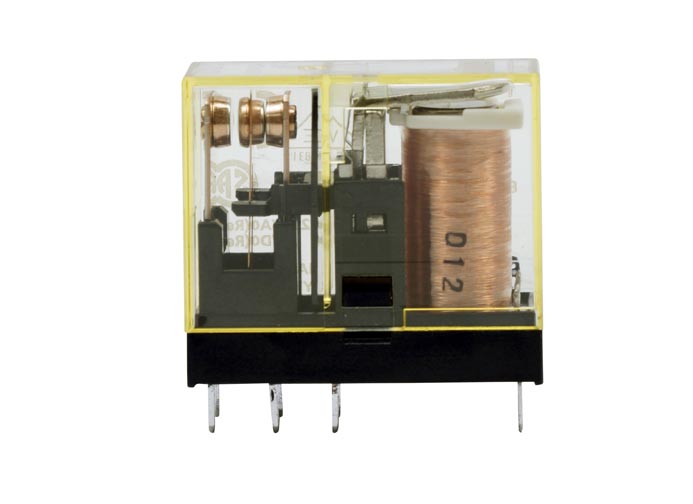

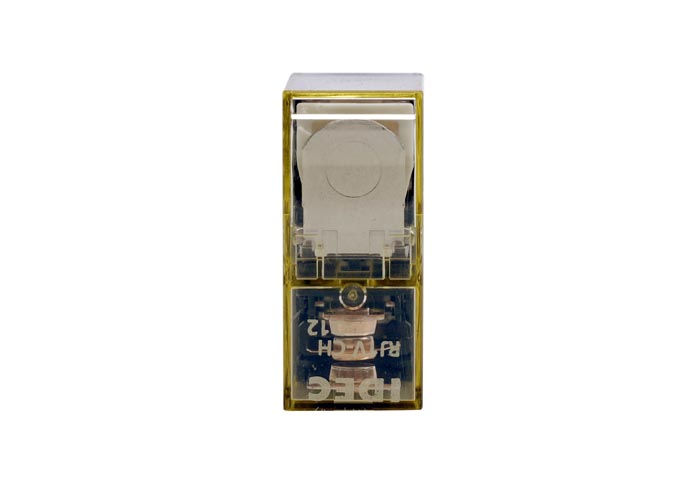

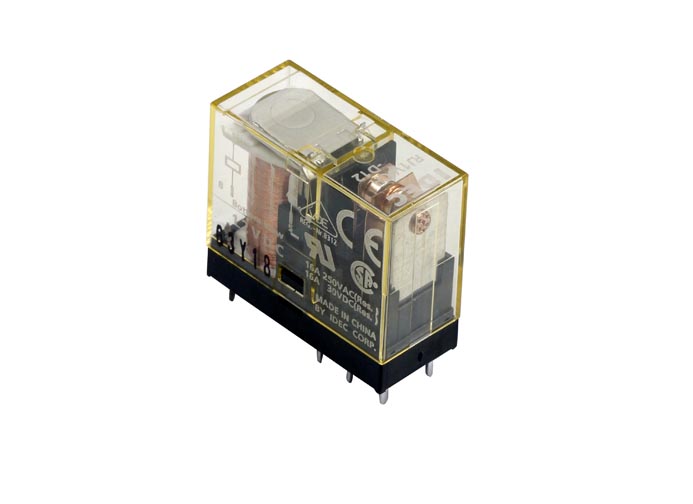

RJ1V-CH-DC12
RJ
RJ-PCB Power Relay Series
Compact and rugged power relays
Large switching capacity
Compact housing only 12.7-mm wide.
Specification
| Item | Specification |
| Model Type: | RJ1V-CH-DC24 |
| Contact Form: | 1c (SPDT) |
| Number of poles: | 1 pole |
| Contact Rated Load Voltage: | 250VAC, 30VDC |
| Resistive Load: | 16A, 250VAC / 8A, 30VDC |
| Inductive Load: | 8A, 250VAC / 4A, 30VDC |
| Allowable Switching Current: | 16 A |
| Allowable Switching Voltage: | AC250V DC125V |
| Coil Rated Current: | 22.1 mA |
| Coil Resistance: | 1,080 Ω (±10%, 20 ºC) |
| Power Comsumption: | Approx. 0.53 |
| Operate Time: | 15 ms maximum |
| Release Time: | 10 ms maximum (with diode: 20 ms maximum) |
| Dielectric Strength (Between coil and contacts): | 5000V AC, 1 minute |
| Dielectric Strength (Between contacts of the same polarity): | 1000V AC, 1 minute |
| Vibration Resistance (Operating extremes): | 10 to 55 Hz, amplitude 0.75 mm |
| Vibration Resistance (Damage limits): | 10 to 55 Hz, amplitude 0.75 mm |
| Shock Resistance (Operating extremes): | NC contact: 100 m/s2 |
| Shock Resistance (Damage limits): | 1000 m/s2 |
| Electrical Life (rated load): | AC load: 200,000 operations minimum (operation frequency 1800 operations per hour) DC load: 100,000 operations minimum (operation frequency 1800 operations per hour) |
| Mechanical Life (no load): | AC coil: 30,000,000 operations minimum (operation frequency 18,000 operations per hour) DC coil: 50,000,000 operations minimum (operation frequency 18,000 operations per hour) |
| Operating Temperature: | –40 to +70°C (no freezing) |
| Operating Humidity | 5 to 85% RH (no condensation) |
