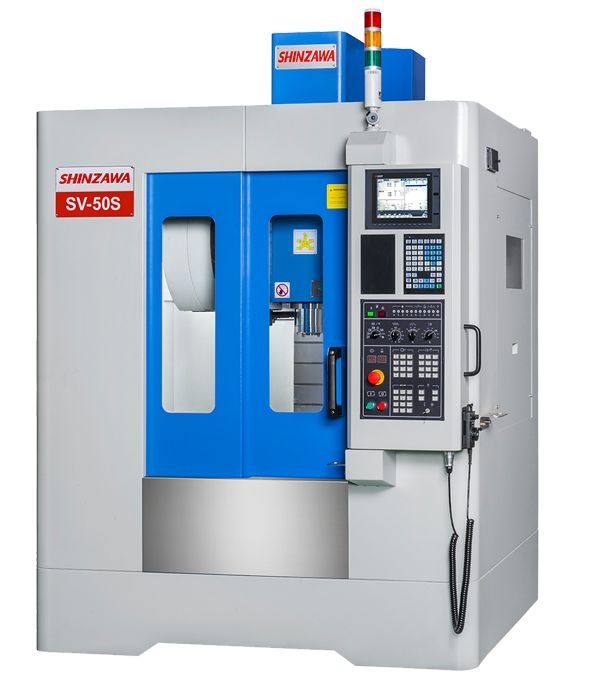

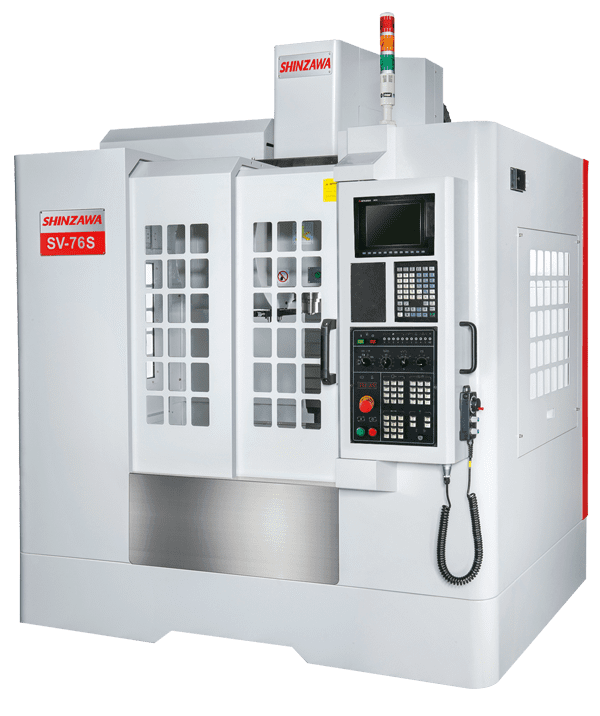

The vertical machining center integrates the features of high speed and maximum stability. The series of machines enhances the structural design to assure the best dynamic and static stability. They are equipped with a 10,000rpm high speed spindle, combined with 48 m/min. rapid traverse rate on three axes making it the most valuable vertical machining center.
PERFECT STRUCTURAL RIGIDITY
The stable low gravity machine base offers a solid foundation for the entire machine. The V-shaped inner ribs provide long lasting dynamic and static accuracy.
Extra wide span between linear ways exhibits exceptional stability to absorb cutting vibration; free from overhang problems.
All structural parts are manufactured from high tensile FC-300 cast iron, stress relieved and deformation free.
The box type construction features anti-deformation and anti-bending.
The A-shaped machine column firmly supports the ATC unit and head stock. The design is capable of dealing with cutting force from axial and radial directions.
Specifications
*We reserve the right to modify the design and specifications without notice in advance.
Standard Equipment
- 10,000rpm direct-drive spindle
- Rigid tapping
- Spindle air blast device
- Fully enclosed splash guard
- Heat exchange for electrical cabinet
- Automatic lubrication system
- Spindle cooling system
- Cooling system and coolant tank
- Work lamp
- Foundation bolts and blocks
- Tool box with tools
- Operation and maintenance manual
- Coolant flushing device
- Flush gun
Optional Equipment
- 10,000/12,000rpm belt type spindle
- 12,000/15,000rpm direct-drive spindle
- 24,000/30,000/36,000rpm built-in spindle
- Y axis rear side chip conveyor
- Y axis rear side screw type chip conveyor
- 4th axis rotary table
- Transformer
- Air conditioner for electrical cabinet
- Coolant through spindle
- Tool length measurement
