Rigid design, high stability structure.
Casting items are all with the furnace stress relieved.
3 axes are all pre-tensioned C3 Ball screw & nut.
Durable hardened-treatment box type guide-way.
All of the series by oil/coolant water separation design.
All of the series by TRELLEBORG wear resistant sheets.

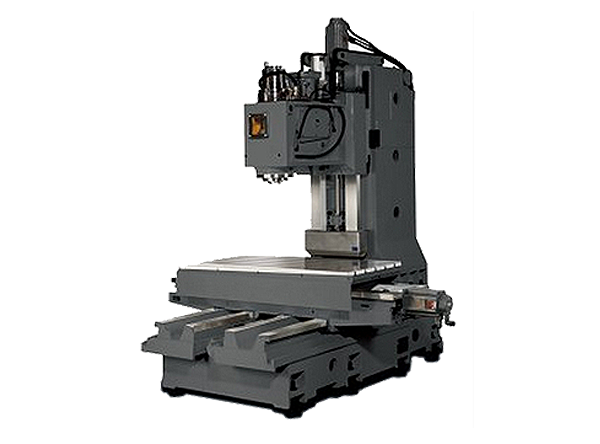

Rigid design high precision machine frame structure
High strength machine frame, all casting, 100% Taiwan-made.
Box type guide-ways reinforces working performance and greatly reduces tooling wear-out.
Delicate scraping, all 3 axes equip C3 class ball screw.
All of 3 axes by direct-drive design.
All of the series by oil-coolant spindle.
Z axis equipping with a counterbalance weight secures its travel perfectly stabilized & smoothened in the rapid speed.
Main spindle available with the option of BT-40 and BT-50.
Sizable for the regular dry container packing reduce the delivery cost.
Specifications
*We reserve the right to modify the design and specifications without notice in advance.
Standard Equipment
- Rigid tapping
- Spindle air blast device
- Full enclosed splash guard
- Heat exchanger for electrical cabinet
- Auto lubrication system
- Spindle oil cooler
- Cooling system and coolant tank
- Work lamp
- Foundation bolts and blocks
- Tool box with tools
- Operation and maintenance manual
- Coolant flushing device
- Flushing gun
- Screw type chip conveyor
Optional Equipment
- Coolant through spindle
- Chip conveyor
- Air conditioner for electric cabinet
- 4th axis rotary table
- Linear scale
- Tool length measurement
- BT50 gear type spindle
