SWISS TYPE SLIDING HEAD CNC LATHE
JSL-20AB
JSL-20AB
-
Max. turning diameter 20mm.
-

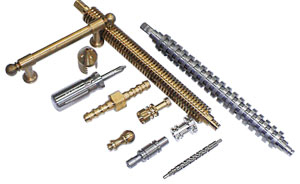

With guide bush holder and long parts catcher, it can make long and complicated components.
-
With non guide bush holder, the length of rest bar can be reduced up to 50mm.
-
Seven axes simultaneously movement (X1/Y1/Z1/X2/Z2/C1/C2).
-
Main / Sub spindle C axis movement.
-

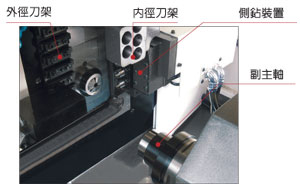

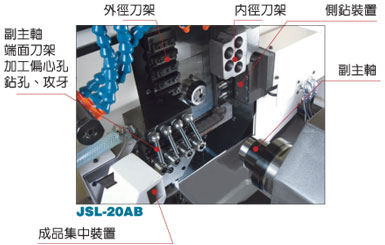

Sub tooling system can make eccentric drilling, milling and grooving function.
Specification
| ITEM | UNIT | 20AB |
|---|---|---|
| Max. turning dia. of main spindle | mm | 20 |
| Max. turning dia. of sub spindle | mm | 20 |
| Max turning length (Fixed guide bush) | mm | 200 |
| Max. turning length (Rotary guide bush) | mm | 85 (optional:150) |
| Max. turning length (Non guide bush) | mm | 45 |
| Max. drilling capacity of main spindle | mm | 10 |
| Max. drilling capacity of sub spindle | mm | 10 |
| Max. tapping capacity of main spindle | M8 | |
| Max. tapping capacity of sub spindle | M8 | |
| Max. cross drilling capacity | mm | 10 |
| Max. cross tapping capacity | M6 | |
| No. of external turning tools | pcs | 8 |
| No. of internal turning tools | pcs | 5 |
| No. of cross drillings | pcs | 4 (optional:7) |
| Face tool holder (Sub~spindle) | pcs | 4 |
| Size of tool | mm | 12x12x90 |
| No. of axis controls | 7 (X1/Y1/Z1/X2/Z2/C1/C2) |
|
| Bore of spindle | mm | 29 |
| Spindle speed range | rpm | 200~8000 |
| Rapid traverse X / Z | m/min | 24 |
| Main spindle motor | kw | 3.7 |
| Sub spindle motor | kw | 2.2 |
| X1 / Z1 motor | kw | 0.5 / 0.75 |
| Y-Axis motor | kw | 0.75 |
| Cross drilling motor | kw | 0.75 |
| End drilling motor | kw | 0.75 |
| X2 / Z2 motor | mm | 0.5 / 0.5 |
| Coolant motor | kw | 0.375 |
| Power Requirement | kw | 15KVA |
| Machine dimensions | mm | 2605x1420x2150 |
| Weight | kg | 2400 |
