SWISS TYPE SLIDING HEAD CNC LATHE
JSL-42RB／RBY
JSL-42RB/RBY
-
Max. turning diameter 32mm ~ 42mm.
-
Max eight axes simultaneously movement (X1/Y1/Z1/X2/Y2/Z2/C1/C2).
-

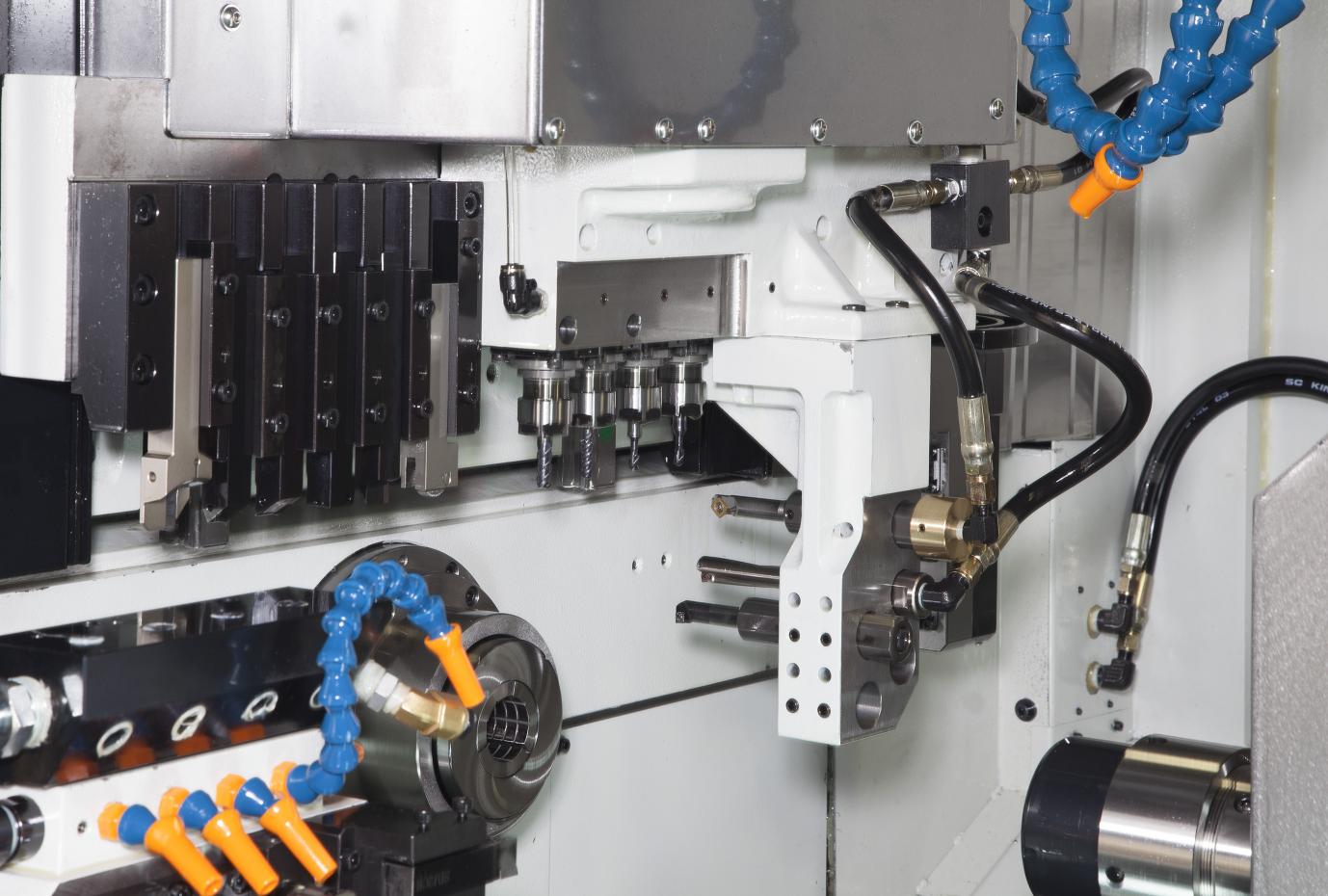

Sub tooling system can make eccentric drilling, milling and grooving function.
-
Side drilling can be converted to end drilling (six for front & six for back).
-
Rigid structure with powerful lives tools brings you stable and versatile machining performance.
Specification
| ITEM | UNIT | JSL-32RB | JSL-32RBY | JSL-42RB | JSL-42RBY |
|---|---|---|---|---|---|
| Max. turning diameter of main spindle | mm | 32 | 42 | ||
| Max. turning diameter of sub-spindle | mm | 32 | 42 | ||
| Max. turning length(rotating guide bushing) | mm | 310 | |||
| Max. turning length(non-guide bushing) | mm | 105 | |||
| Max. turning length(fixed bushing) | mm | 350 | |||
| Max. drilling/tapping capacity of sub spindle | mm | Ø13 / M10 | |||
| Max. drilling/tapping capacity of main spindle | mm | Ø10 / M8 | |||
| Max. cross drilling/tapping capacity | mm | Ø10 / M6 | |||
| O.D. tool holder | pcs | 6 (口16mm) / 5 (口20mm) | |||
| I.D. tool holder | pcs | 5 / Ø25mm | |||
| S1 cross live tool holder | pcs | 6 (ER-16×2 ＆ ER-20×4) | |||
| Face drills of sub-spindle | pcs | 4 | 8 | 4 | 8 |
| Controlled axes (Incl. C-axis) | pcs | 7 | 8 | 7 | 8 |
| Main/sub-spindle bore | mm | Ø34 | Ø44 | ||
| Max. speed of main/sub-spindle | rpm | 7000 | 6000 | ||
| X1/Z1/Y1/X2/Z2/Y2 axis rapid traverse | m/min | 24 | |||
| Max. speed of S1 cross drilling | rpm | 4000 | |||
| S1cross tooling drive motor | KW | 1.6 | |||
| S2 face tooling drive motor | KW | 0.75 | |||
| Max. speed of S2 drill | rpm | 4000 | |||
| Main spindle motor | KW | 5.5 / 7.5 | |||
| Sub spindle motor | KW | 5.5 / 7.5 | |||
| X1/Z1 axis motor | KW | 1.4 | |||
| Y1/X2/Z2 axis motor | KW | 0.75 | |||
| Y2 axis motor | KW | non | 0.75 | non | 0.75 |
| Coolant pump motor | KW | 1.29 | |||
| Power required | KVA | 30 | |||
| Lubrication oil capacity | L | 2 | |||
| Coolant tank capacity | L | 250(100%) | |||
| Machine dimensions(L x W x H) | mm | 3106x1690x2100 | |||
| Weight | KG | 4900 | 4920 | 4900 | 4920 |
