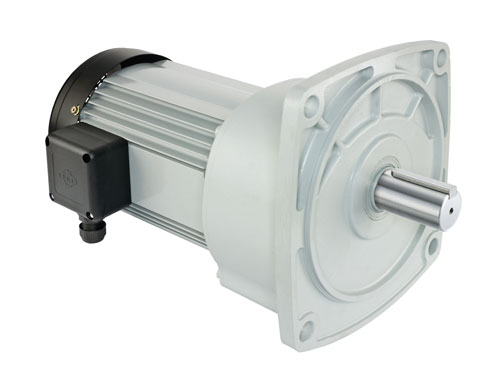

Helical Gear Speed Reducers
Vertical-Helical Gear Motor Type
GFM 系列

Specification

  • Product Description

Model:GL-M(GF) 2 Stage separate parts GF-M

NO PART NAME
1 GL Main Body
1-1 GF Main Body
2 Input Cover
3 Output Shaft
4 Gear A
5 Gear B
6 Gear E
7 Gear F
8 Thrust ball Bearing
9 Self Lubrication Bearing
10 Pin
11 Seal
12 Deep Groove Bearing
13 Deep Groove Bearing
14 Deep Groove Bearing
15 O Ring
16 Seal
17 Deep Groove Bearing
18 Deep Groove Bearing
19 Motor Rotor
20 Motor Stator
21 Motor Casement
22 Rear Cover
23 Fan
24 Air lntake cover
25 Key
26 Inner Hexs. Screw
27 Cross Screw
28 Inner Hex. Screw



Model:GL-M(GF) 3 Stage separate parts GF-M



NO PART NAME
1 GL Main Body
1-1 GF Main Body
2 Input Cover
3 Output Shaft
4 Gear A
5 Gear B
6 Gear C
7 Gear D
8 Gear E
9 Gear F
10 Thrust ball Bearing
11 Self Lubrication Bearing
12 Pin
13 Seal
14 Deep Groove Bearing
15 Deep Groove Bearing
16 Deep Groove Bearing
17 Deep Groove Bearing
18 Deep Groove Bearing
19 Seal
20 Deep Groove Bearing
21 Deep Groove Bearing
22 O Ring
23 Motor Rotor
24 Motor Stator
25 Motor Casement
26 Rear Cover
27 Fan
28 Air lntake cover
29 Key
30 Inner Hexs. Screw
31 Cross Screw
32 Inner Hex. Screw

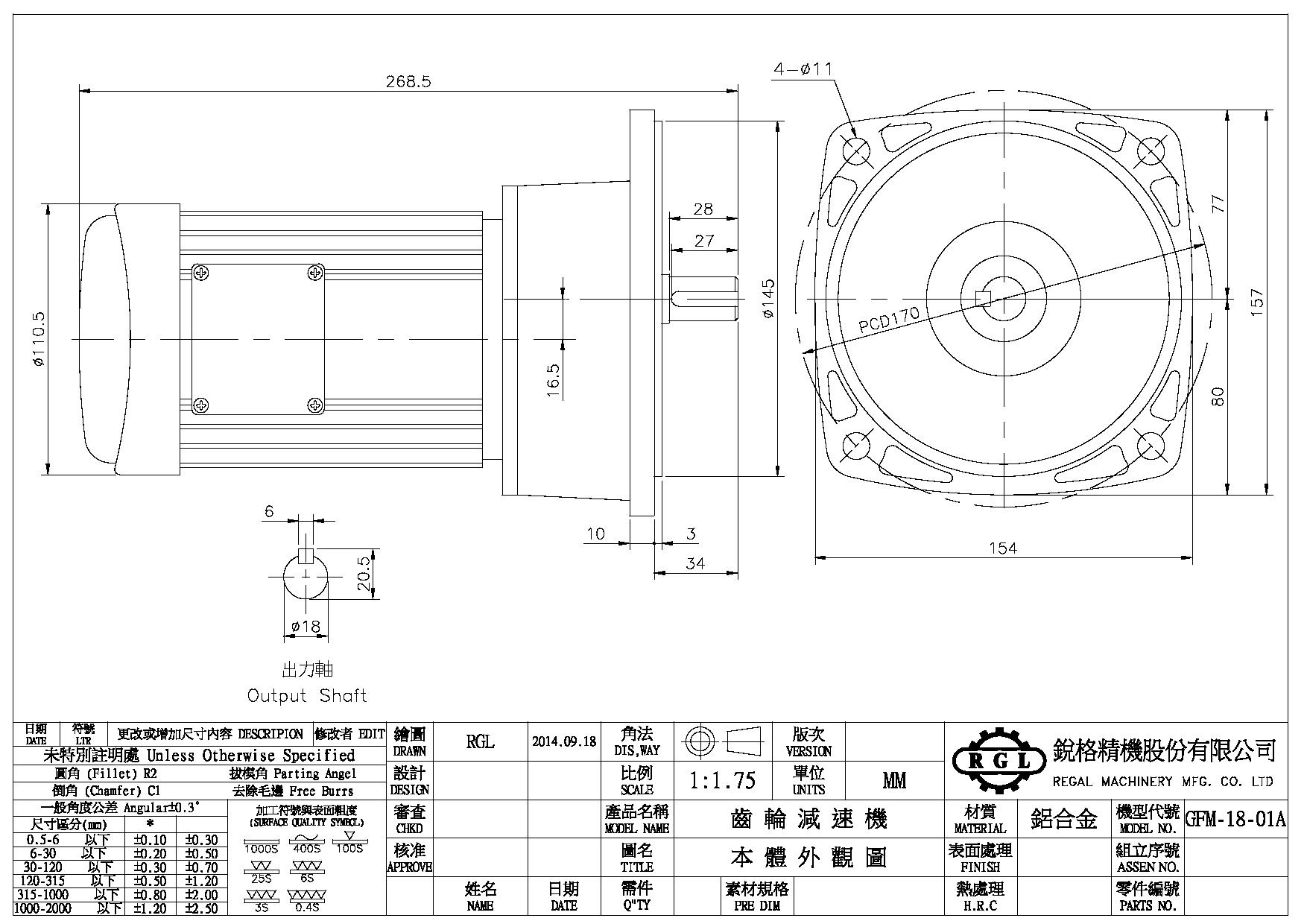

  • Product Specification
SIZE LL A B C D1 D2 D E F G K I J
GF-18M
GF-22M		 286.5
285		 10
12		 34
45.5		 3
4		 80
89		 77
82.5		 157
171.5		 154
164		 11
11		 145
148		 16.5
19		 170
185		 111
111
GF-18M
GF-22M
GF-28M		 288
312.5
330		 10
12
15		 34
45.5
50		 3
4
4		 80
89
105.5		 77
82.5
93		 157
171.5
198.5		 154
164
186		 11
11
11		 145
148
170		 16.5
19
23.5		 170
185
215		 142
142
142
GF-22M
GF-28M
GF-32M		 317.5
335
353.5		 12
15
15		 45.5
50
61		 4
4
4		 89
105.5
126.5		 82.5
93
107.5		 171.5
198.5
234		 164
186
215		 11
11
13		 148
170
148		 19
23.5
28.5		 185
215
250		 157
157
157
GF-28M
GF-32M
GF-40M		 358
378.5
425.5		 15
15
18		 50
61
72		 4
4
5		 105.5
126.5
149		 93
107.5
135		 198.5
234
284		 186
215
270		 11
13
15		 170
180
230		 23.5
28.5
34		 215
250
310		 175
175
175
GF-32M
GF-40M
GF-50M		 421
484.5
507		 15
18
25		 61
72
83		 4
5
5		 126.5
149
173.5		 107.5
135
150		 234
284
323.5		 215
270
300		 13
15
22		 180
230
270		 28.5
34
40		 250
310
360		 196
196
196
GF-40M
GF-50M		 484.5
541		 18
25		 72
83		 5
5		 149
173.5		 135
150		 284
323.5		 270
300		 15
22		 230
270		 34
40		 310
360		 196
196
GF-50M 544 25 83 5 173.5 150 323.5 300 22 270 40 360 234
SIZE RATIO HP OUTPUT SHAFT
T U V W X
GF-18M
GF-22M		 5~50
60~200		 1/8
0.1KW		 28
38		 27
35		 18
22		 6
6		 20.5
24.6
GF-18M
GF-22M
GF-28M		 5~30
30~200
120~200		 1/4
0.2KW		 28
38
43		 27
35
40		 18
22
28		 6
6
8		 20.5
24.6
31.4
GF-22M
GF-28M
GF-32M		 5~25
30~100
120~200		 1/2
0.4KW		 38
43
53		 35
40
50		 22
28
32		 6
8
10		 24.6
31.4
35.2
GF-28M
GF-32M
GF-40M		 5~25
30~100
120~200		 1
0.75KW		 43
53
63		 40
50
58		 28
32
40		 8
10
12		 31.4
35.2
43
GF-32M
GF-40M
GF-50M		 5~25
30~100
120~200		 2
1.5KW		 53
63
75		 50
58
70		 32
40
50		 10
12
14		 35.2
43
53.5
GF-40M
GF-50M		 5~25
30~100		 3
2.2KW		 63
75		 58
70		 40
50		 12
14		 43
53.5
GF-50M 5~25 5
3.7KW		 75 70 50 14 53.5
