Gear Shaft Milling Machine, Worm Hobbing Machine

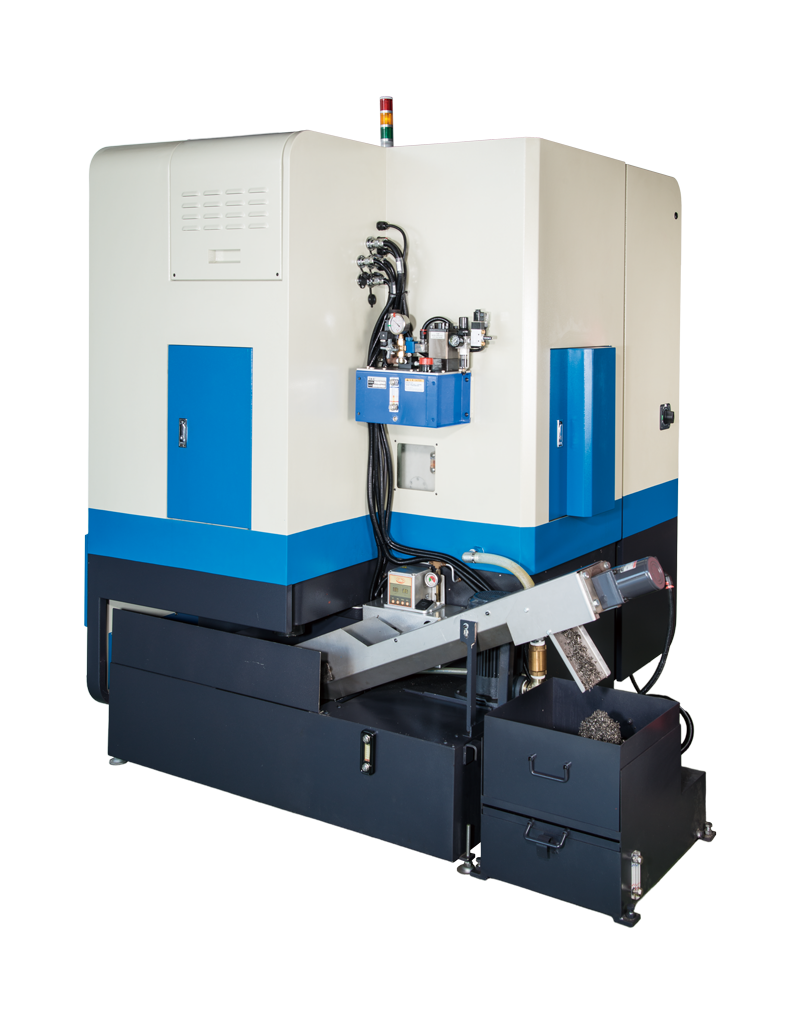

DS-300HZ
DS-1000 HZ, DS-1000 HJ
Machine Features

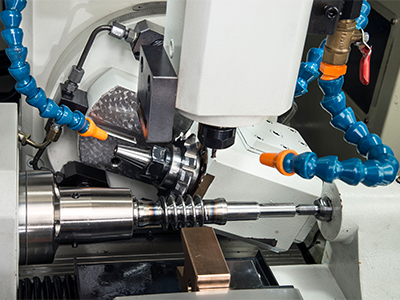

For components with a module below 3, steel forming milling cutters are used for faster cutting. Additionally, mechanical arms can be employed to address labor shortage in high-volume production scenarios.
Thread milling.
Sharp edge removing.
Keyway machining.

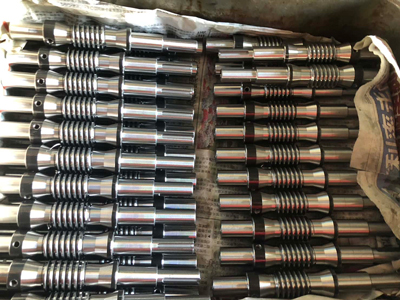

Industry applications: screws for the automotive industry, brush screws, electric massage chair screws, scooter screws, sun tracking systems, worm gears, and other related components.
Specification
Machine Specifications
| CAPACITY | |
|---|---|
| Range of module | M0.25 - M3 |
| Degrees of indexing | 360° |
| Max. cutting length | 300mm |
| Max. cutting diameter | 40mm |
| Max. tool dia. (hole * Keyway) | 110* 25.4* 6.35 mm |
| Helical angle | R.H.45°, L.H. 90° |
| Workpiece clamping method | collet type |
| Tailstock method | Servomotor |
| Number of simultaneously moving shaft | 8‐Axis simultaneous processing |
| SPEED | |
|---|---|
| Max. speed of X‐axis (for. / back.) | 5000 mm/min |
| Max. speed of Y‐axis (right / left) | 5000 mm/min |
| Max. speed of Y2‐axis (right / left) | 5000 mm/min |
| Max. speed of A‐axis (chuck) | 6000 mm/min |
| Max. speed of B‐axis (Cutter tilting axis) | 300 mm/min |
| Max. speed of Z‐axis (up / down) | 5000 mm/min |
| Max. angular speed of S1‐axis cutter | 1500 rpm |
| Max. angular speed of S2‐axis cutter | 6000 rpm |
| Max. speed of cutting stroke | 5000 mm/min |
| ACCURACY | |
|---|---|
| Perpendicularity of machining | ± 5μm / 100mm |
| Workpiece precision | 3~4 levels |
| Workpiece surface quality (μm) | Ra 0.8 |
| MOTOR | |
|---|---|
| X axis motor | 1.8KW / 11.5NM |
| Y axis motor | 1.8KW / 11.5NM |
| Y2 axis motor | 1.3KW / 8.34NM |
| A axis motor | 0.85KW / 5.39NM |
| B axis motor (Cutter tilting axis) | 0.4KW / 1.27NM |
| Z axis motor | 0.85KW / 5.39NM |
| S1 axis cutter motor | 4.4KW / 28.4NM |
| S2 axis cutter motor | 1KW / 3.18NM |
| Cutting fluid motor | 1.5 KW (2HP) |
| Hydraulic motor | 0.75 KW (1HP) |
| Oil controller | 0.15 KW |
| Cutting fluid separation tank | 0.1 KW (1/8HP) |

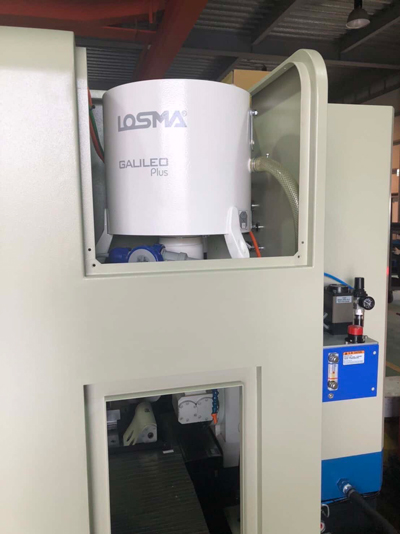

| mist collector | 0.25 KW |
| Chip conveyor | 40 W |
| MISCELLANEOUS | |
|---|---|
| Total power (KW) | 18 KW |
| Machine dimensions | 206* 155* 198 CM |
| positioning space dimensions | 211* 212* 243 CM |
| Packing dimensions | 236* 232* 228 CM |
Machine Specifications

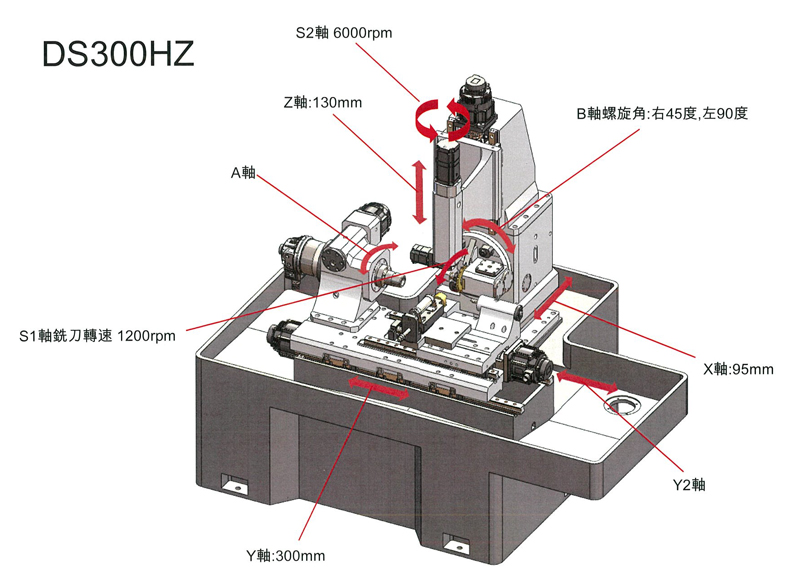

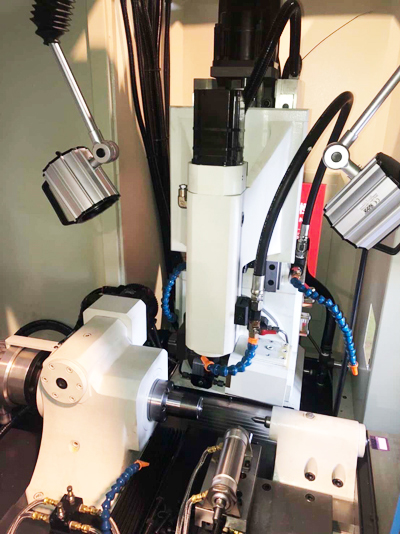

Machine Structures
- For components with a module below 3, steel forming milling cutters are used for faster cutting. Additionally, mechanical arms can be employed to address labor shortage in high-volume production scenarios.
- Thread milling.
- Sharp edge removing.
- Keyway machining.
- Industry applications: screws for the automotive industry, brush screws, electric massage chair screws, scooter screws, sun tracking systems, worm gears, and other related components.
