Products

Oil Inject - Screw
Oil-Injected screw Compressor

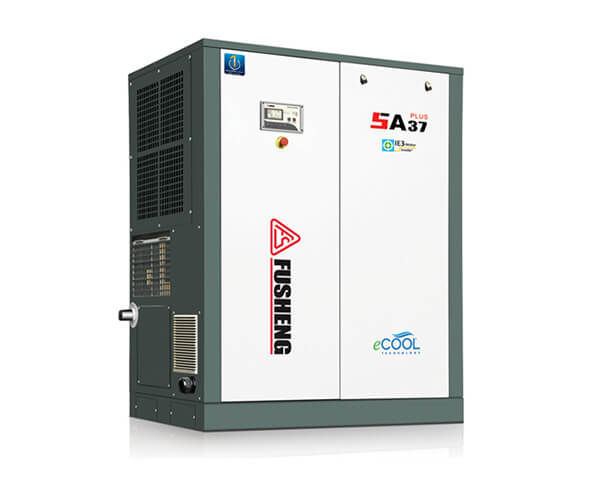

SA PLUS系列

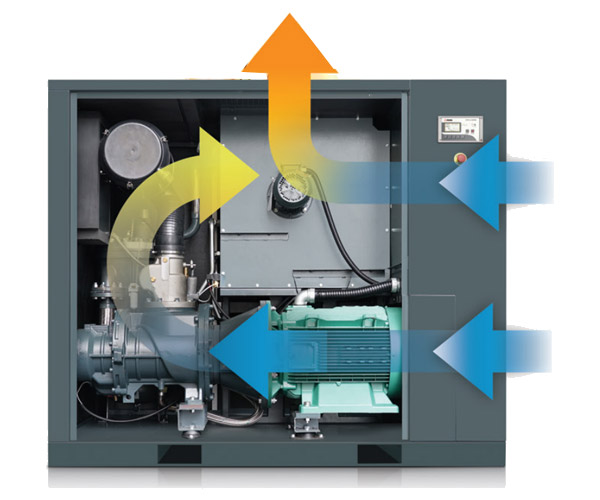

The Fusheng SA series compressors are built with advanced patented helical teeth rotors and delicately processed one-piece casings. These rotary screw air compressors use premium technology to run efficiently and at low cost. They run on 5.5 kW to 220 kW of horsepower, have discharge volumes between 0.85m3/min and 42.0m3/min (operating pressure 7.0kg/cm2G), and meet the international energy efficiency standards. The well-balanced, low vibration, quiet, and overall ergonomic designs enable easy maintenance and space planning, featuring the advanced and thoughtful design of the high-efficiency flow field in the cooling channel and high-precision oil filter. The screw air compressor comes with an intelligent human-machine interface control system and a computerized self-diagnostic safety feature. It is an industrial grade compressor designed for wide industrial applications.
The Fusheng SA PLUS series is verified by TUV Rheinland, a third-party testing laboratory. The design of the compressed air system is based on the five elements (the 5 S’s) that we want our products to provide for the customers - security protection (Safety), ease of Service (Service), stability and reliability (Stable), the international certification (Specification - compliant) and Energy Saving (Cost Saving).

Specification

Working Pressure:7 ~ 12 kg/cm2G

Air Delivery:0.80 ~ 75 m3/min

Motor Power:10 ~535 HP

Model (Fixed Speed) Working Pressure (kg/c㎡G) Delivery (m?/min) Motor Power (HP) Voltage (V) - 60Hz Noise dB(A) 規格欄位

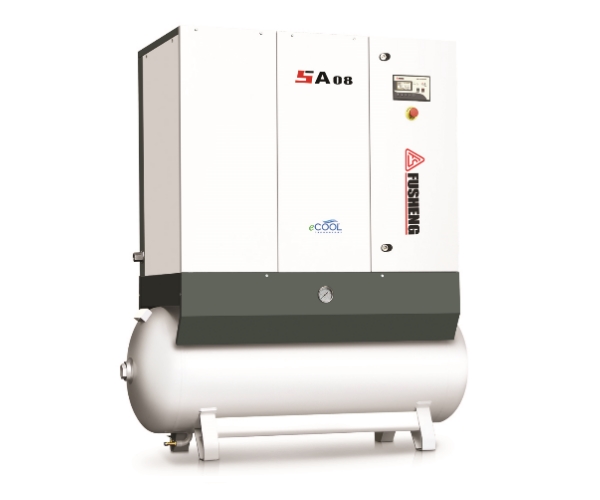

SA08 7 1.27 10 220 380 440 64
SA08-R 8 1.18 10 220 380 440 63
SA08-P 10 0.99 10 220 380 440 63
SA08-F 12 0.8 10 220 380 440 63
SA11 7 1.82 15 220 380 440 65
SA11-R 8 1.7 15 220 380 440 64
SA11-P 10 1.52 15 220 380 440 64
SA11-F 12 1.35 15 220 380 440 64
SA15 7 2.5 20 220 380 440 71
