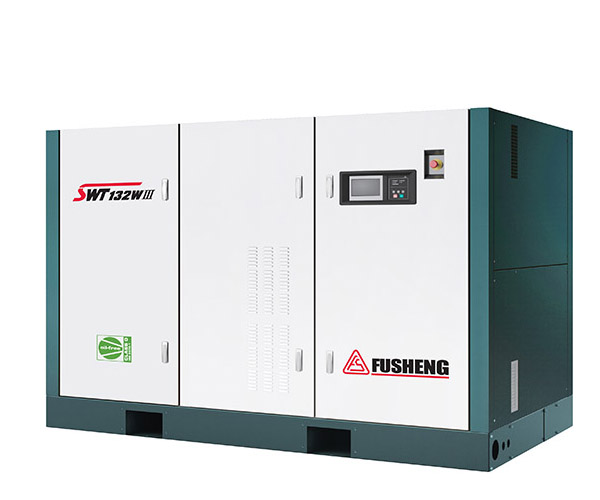

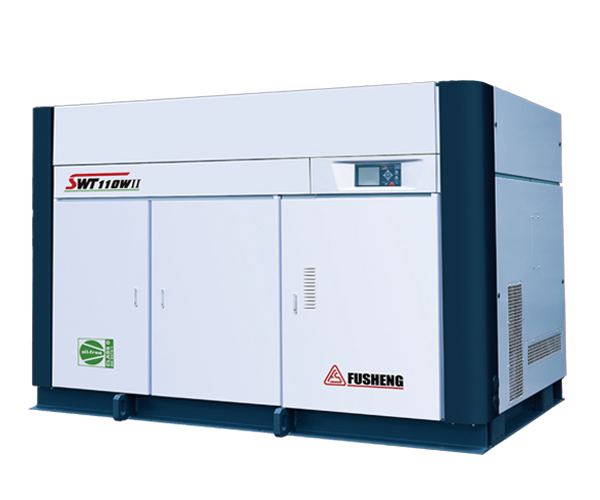

The SWT oil-free screw compressor series works on a dry compression principle and no lubricating oils are required throughout the entire compression process. The series is ISO8573.1 Class 0 certified and supplies 100% oil-free compressed air. It is designed with a sophisticated processing rotor, gear drive, and a reliable seal combination to provide high quality compressed air. It has long lifespan and a wide scope of applications. The unit is CAD integrated, designed, and made; it employs advanced patented VDT dew point control to monitor the temperature and humidity of the compressed air and to enhance compression efficiency. The drawer-type design enables easy maintenance and repair. The SWTII 75 to SWTII 250 compressors are designed to run on operating pressure ranging from 7.0 to 10.0kg/cm2G and are complete with water-cooling models. The discharge volume ranges from 18.7m3/min to 41.7m3/min to supply 100% oil-free clean compressed air.
Working Pressure:0.75~1.0 MPa
Air Delivery:10.1~44 m3/min
Motor Power:100 ~ 370 HP
| Model | Gauge pressure(MPa) | Delivery (m3/min) | Motor Power (kW) | Weight (kg) | Dimensions L.W.H (mm) |
| SWT75CAⅡ | 0.75 | 11.8 | 100 | 2085 | 1830x1400x1783 |
| SWT75CAⅡ | 0.85 | 10.1 | 100 | 2085 | 1830x1400x1783 |
| SWT75AⅡ | 0.75 | 12.8 | 100 | 2840 | 2010x1500x2160 |
| SWT90AⅡ | 0.75 | 15.8 | 120 | 3080 | 2010x1500x2160 |
| SWT90AⅡ | 0.85 | 12.8 | 120 | 3080 | 2010x1500x2161 |
| SWT100AⅡ | 0.75 | 17 | 130 | 3080 | 2010x1500x2162 |
| SWT75CWⅡ | 0.75 | 12 | 100 | 2135 | 1730x1170x1683 |
| SWT75CWⅡ | 0.85 | 10.3 | 100 | 2135 | 1730x1170x1683 |
| SWT75CWⅡ | 1 | 10.3 | 100 | 2135 | 1730x1170x1683 |
