Hi-Speed Built-in Spindle
Built-in Type Spindle
Applications :
• Suitable for carving machines.
Spindle Features :
• Spindle speed：24,000 rpm
• Spindle cooling method: Oil cooling.
Specification
| Model | |
|
Maximum Speed |
24,000 R.P.M |
|
Maximum Dynamic Runout |
0.01 mm |
|
Cooling Water Flow Rate |
56.9 IMP( L/Hour ) |
|
Cooling Water Inlet Temperature |
18~22˚C |
|
Axial Failure Load (Push) |
25 kgf |
|

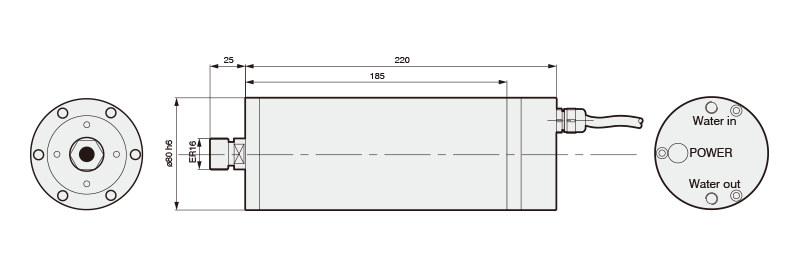

Body Size |
80 mm (h6) |
|
Weight |
7 kg |
