Hi-Speed Built-in Spindle
Oil-Cooled Spindle： 110A0504B15F
Applications :
• CNC Engraving Machine.
• Grinding Machine.
Spindle Features :
• Power Output : 11 kW
• Maximum Speed : 15,000 rpm
• It also features low vibration, high accuracy, low thermal growth and minimized thermal deformation.
• Rigorous Quality Control Creates Dependable Quality !
• Our motors are manufactured according to customer's usage and material. The parts used are customized to suit customer’s requirements.
Specification

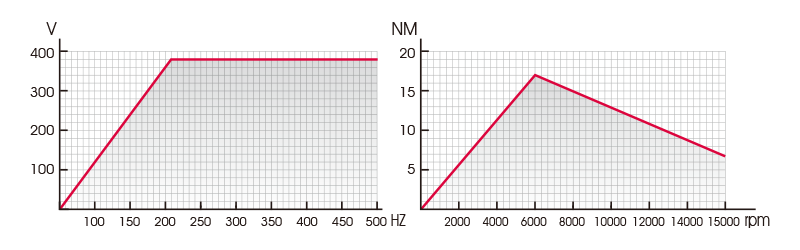

CURVE

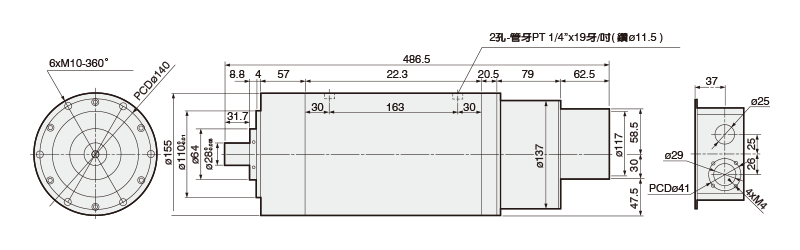

DIMENSIONS
| Model | 110A0504B15F |
|
Motor Features |
|
|
Voltage |
AC 3ø |
|
Power Output |
11 kW |
|
Maximum Speed |
15000 rpm |
|
Cooling Oil Pressure |
4 kg/cm2 |
|
Cooling Oil Flow |
20 l/min |
|
Cooling Oil Temperature |
24~28˚C |
|
Motor Weight |
28 Kg |
