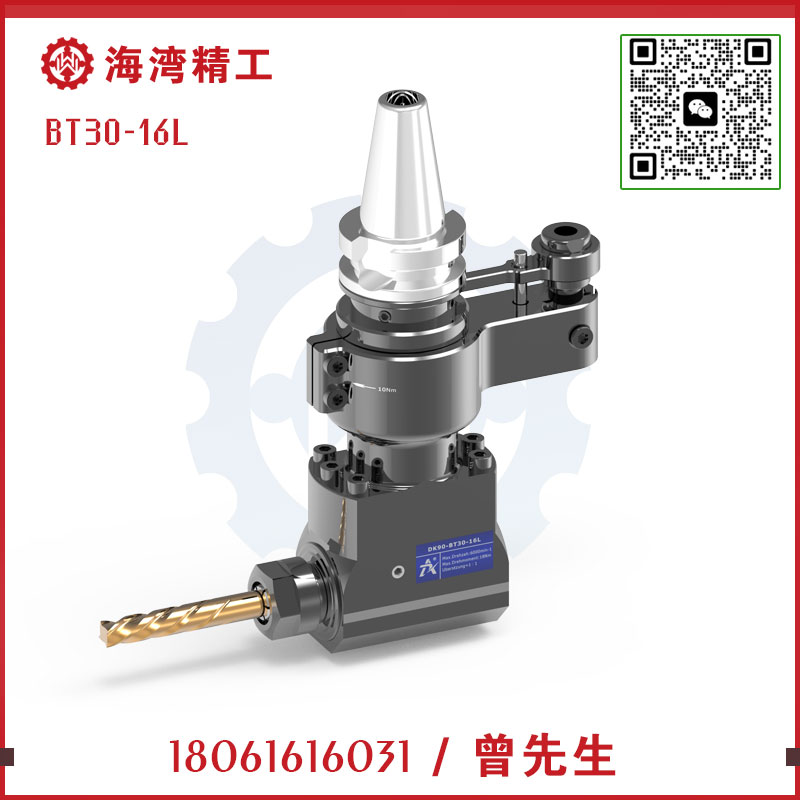

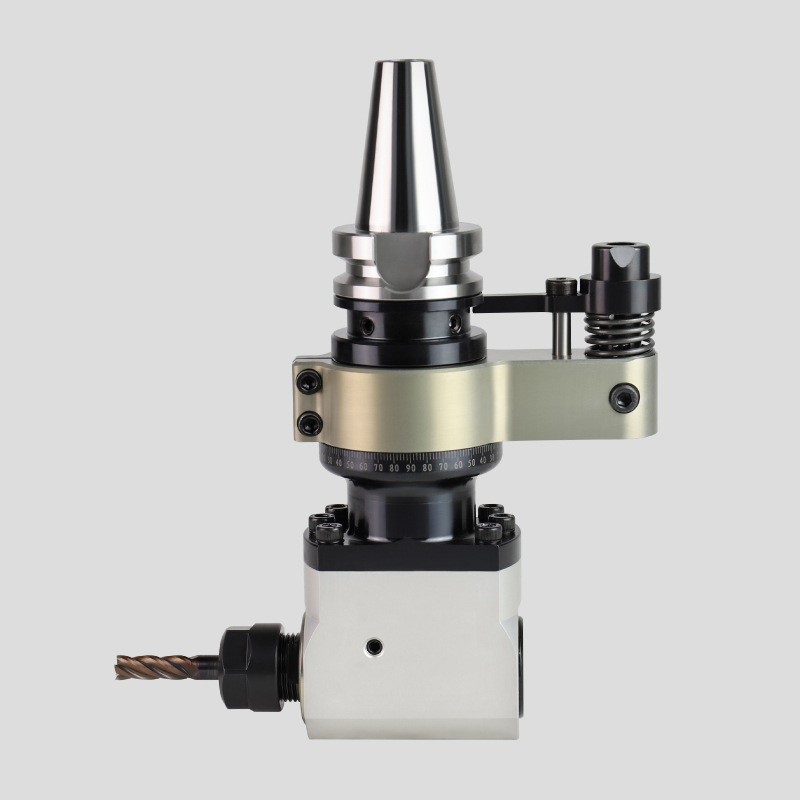

Model name: BT30| Product Type: Customized
Product introduction:
1. The housing is made of aviation aluminum, which is
processed by aging and precision machining. It has the characteristics of high rigidity, high precision and long life. The minimum allowable passing diameter is фD100. 2. The main transmission shaft is made of special alloy material, processed by strict heat treatment process, and finally precisely ground to achieve high stability of transmission.
3. The gear bearings are all imported, which ensures high torque and low noise of transmission.
4. The input and output forms are diverse and flexible, not limited to BT or ER interfaces, and can meet the use of various precision processing equipment, and can be used for milling, drilling, tapping, grinding and other processes.

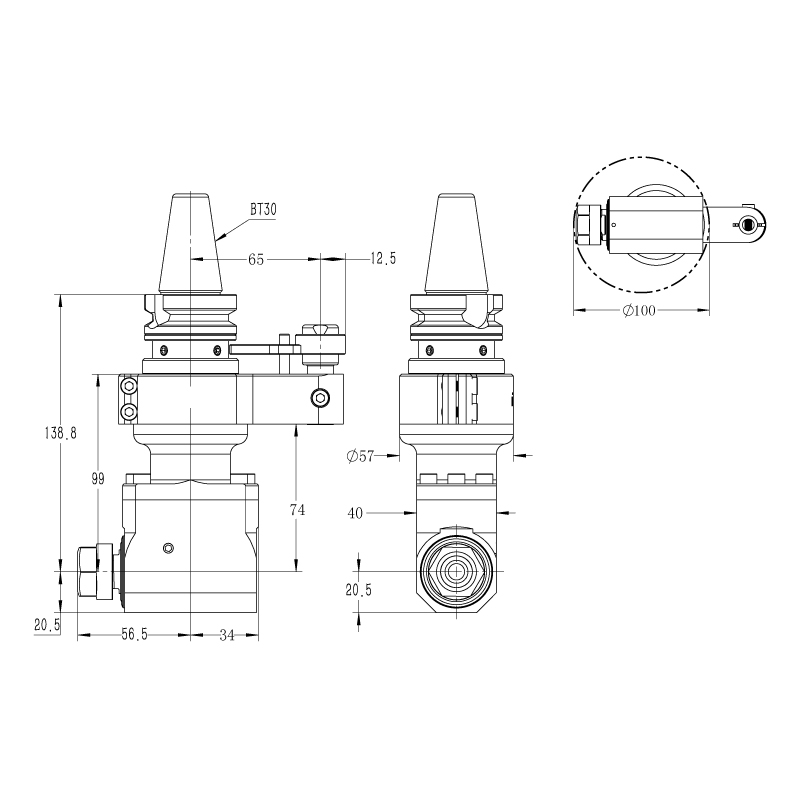

◎Specification model: DK90-BT30-ER16L
◎Driving tool holder: BT30
◎Other tool handles: supported
◎Peak speed: 6000RPM
◎Spindle steering: CW-CW
◎Transmission ratio: 1:1
◎Passing diameter: D100
◎Clamping range: D1-D10
◎Tapping range: M5-M8
◎Peak torque: 18Nm
◎ Milling head weight: 1.851kg
◎Inventory status: Always in stock
◎Non-standard customization: supported
