Model Name: BT50| Product Type: Standard
Product introduction:
1. The housing is made of 40Cr, which is processed by aging and precision machining, and has the characteristics of high rigidity, high precision and long life. The minimum allowable diameter is фD51.
2. The main transmission shaft is made of special alloy material, processed by strict heat treatment process, and finally precisely ground to achieve high stability of transmission.
3. The gear bearings are all imported, which ensures high torque and low noise of transmission.
4. The input and output forms are diverse and flexible, not limited to BT or ER interface, which can meet the use of various precision processing equipment and can be used for milling, drilling, tapping, grinding and other processes.

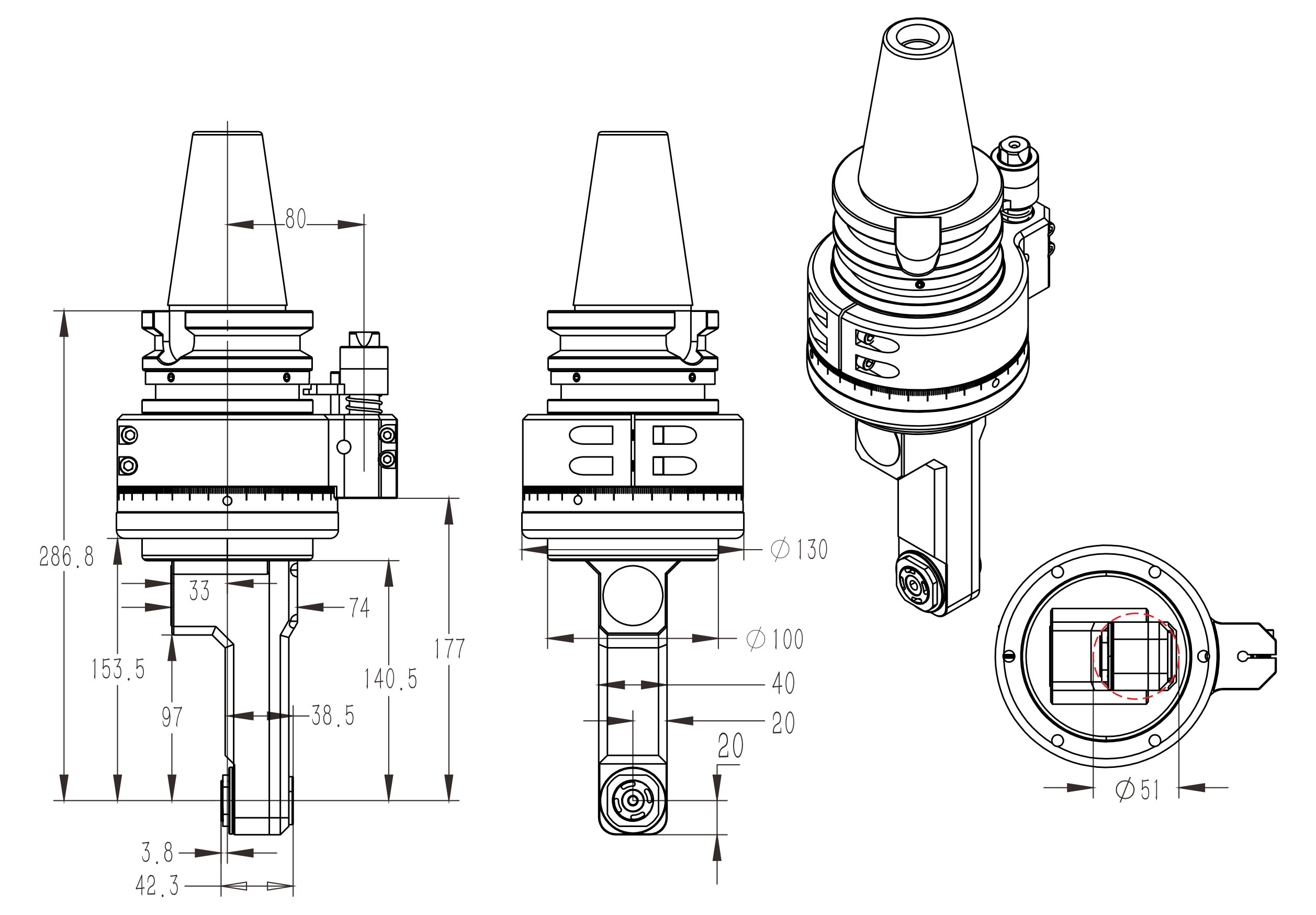

Milling head parameter table

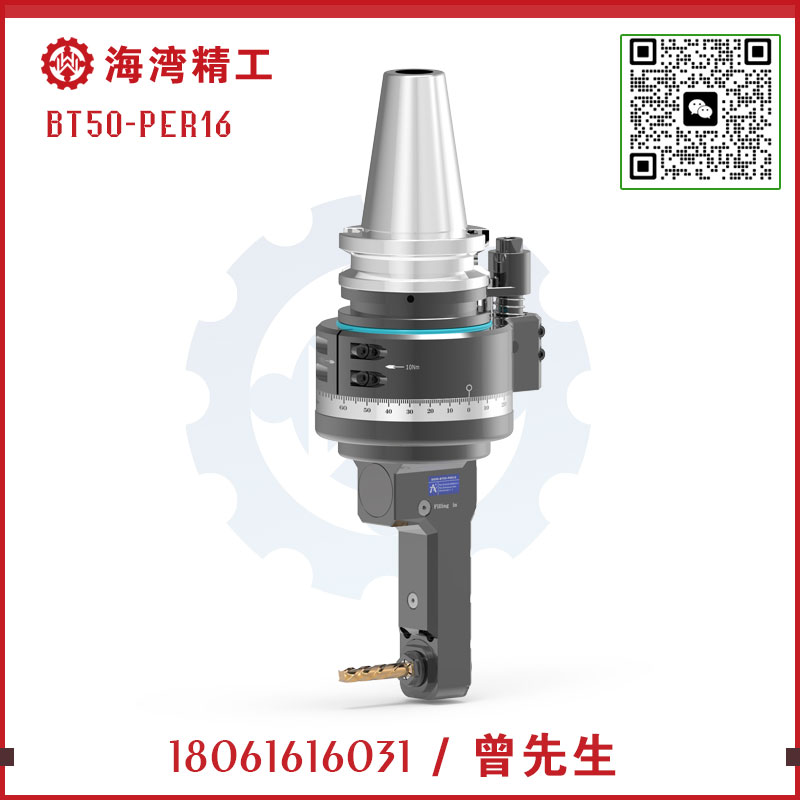

Specifications: DK90-BT50-PER16
Drive handle: BT50
Other tool holders: supported
Peak speed: 4000RPM
Spindle direction : CW-CW
Transmission ratio: 1:1
Through diameter: D51
Clamping range: D1-D10
Tapping range: Milling
Peak torque : 18.Nm
Milling head weight: 10.074 kg
Stock Status: Always in stock
Non-standard customization: support
