SLA End Mill Holder
ABT 系列
Features
‧ For straight shank end mill.
‧ End mill is held by two set screws.
‧ End mill holder comes equipped with set screws.
‧ Balancing: 30,000 r.p.m G2.5
‧ ABT-SLA is produced by order.

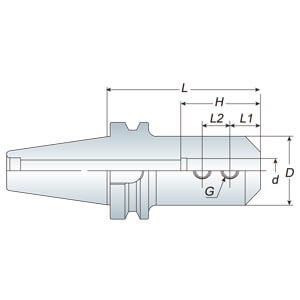

Specification
| Model No. | d | D | L | L1 | L2 | H | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ABT40 SLA06-075/100 | 6 | 25 | 75/100 | 12 | 10 | 32 | M6 | 1.30 |
| ABT40 SLA08-075/100 | 8 | 28 | 75/100 | 14 | 12 | 36 | M8 | 1.40 |
| ABT40 SLA10-075/100 | 10 | 35 | 75/100 | 15 | 14 | 40 | M10 | 1.50 |
| ABT40 SLA12-075/100 | 12 | 40 | 75/100 | 20 | 16 | 45 | M10 | 1.65 |
| ABT40 SLA14-075/100 | 14 | 42 | 75/100 | 18 | 16 | 45 | M10 | 1.75 |
| ABT40 SLA16-075/100 | 16 | 45 | 75/100 | 20 | 18 | 50 | M10 | 1.85 |
| ABT40 SLA20-075/100 | 20 | 50 | 75/100 | 25 | 20 | 60 | M12 | 2.00 |
| ABT40 SLA25-075/100 | 25 | 55 | 75/100 | 25 | 22 | 65 | M12 | 2.00 |
| ABT40 SLA32-090 | 32 | 60 | 90 | 30 | 22 | 70 | M16 | 2.00 |
| ABT40 SLA40-105 | 40 | 80 | 105 | 30 | 22 | 80 | M16 | 3.10 |
| ABT40 SLA42-105 | 42 | 80 | 105 | 35 | 25 | 80 | M20 | 3.10 |
| ABT50 SLA06-105 | 6 | 25 | 105 | 12 | 10 | 32 | M6 | 4.10 |
| ABT50 SLA08-105 | 8 | 28 | 105 | 14 | 12 | 36 | M8 | 4.10 |
| ABT50 SLA10-105 | 10 | 35 | 105 | 15 | 14 | 40 | M10 | 4.20 |
| ABT50 SLA12-105 | 12 | 40 | 105 | 20 | 16 | 45 | M10 | 4.35 |
| ABT50 SLA14-105 | 14 | 42 | 105 | 18 | 16 | 45 | M10 | 4.35 |
| ABT50 SLA16-105 | 16 | 45 | 105 | 22 | 18 | 50 | M10 | 4.45 |
| ABT50 SLA20-105 | 20 | 50 | 105 | 25 | 20 | 60 | M12 | 4.50 |
| ABT50 SLA25-105 | 25 | 55 | 105 | 25 | 22 | 65 | M12 | 4.60 |
| ABT50 SLA32-105 | 32 | 60 | 105 | 30 | 22 | 70 | M16 | 4.70 |
| ABT50 SLA40-105 | 40 | 80 | 105 | 30 | 22 | 80 | M16 | 5.40 |
| ABT50 SLA42-105 | 42 | 80 | 105 | 35 | 25 | 80 | M20 | 5.50 |
| ABT50 SLA50.8-105 | 50.8 | 95 | 105 | 35 | 25 | 90 | M20 | 6.00 |
Unit: mm
