Milling Chuck
ASC High Speed Milling Chuck ABT Series
ABT 系列

Features
‧ ASC tooling system is suitable for high speed and high precision cutting.
‧ When using without collet, ASC tooling system is designed for coolant type - THROUGH TOOLS.
‧ Dust-proof design could extend tool holder lifetime.
‧ C-type wrench is attached for each ASC milling chuck.
‧ Balancing: 30,000 r.p.m G2.5
‧ ABT-ASC is produced by order.

Specification

proimages/product/tool-holder/th-7/th-7-2-3.jpg

Without Collet - Through tools

proimages/product/tool-holder/th-7/th-7-2-4.jpg

With Collet - Through collets

Specification

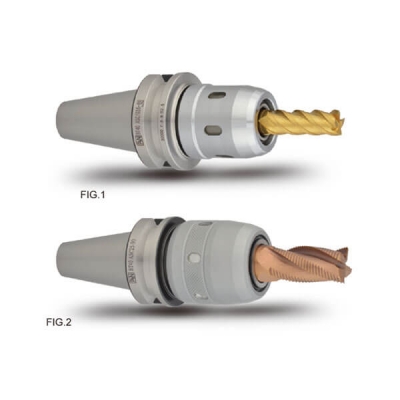

Model No. FIG. Clamping Range d D L L1 Collet Type Weight (kg)
ABT30 ASC16-080 1 3~16 16 46 80 65 SC16 1.10
ABT30 ASC20-085 1 4~20 20 53 85 72 SC20 1.30
ABT40 ASC16-080 1 3~16 16 46 80 65 SC16 1.60
ABT40 ASC20-080 1 4~20 20 53 80 72 SC20 1.80
ABT40 ASC25-090 2 6~25 25 58 90 85 SC25 1.90
ABT40 ASC32-105 2 6~32 32 68 105 95 SC32 2.80
ABT50 ASC16-110 1 3~16 16 46 110 65 SC16 4.70
ABT50 ASC16-150 1 3~16 16 46 150 65 SC16 5.00
ABT50 ASC20-110 1 4~20 20 53 110 72 SC20 5.00
ABT50 ASC20-150 1 4~20 20 53 150 72 SC20 6.00
ABT50 ASC25-100 2 6~25 25 58 100 85 SC25 4.60
ABT50 ASC25-150 2 6~25 25 58 150 85 SC25 5.50
ABT50 ASC32-105 2 6~32 32 76 105 95 SC32 5.20
ABT50 ASC32-150 2 6~32 32 76 150 95 SC32 6.40
ABT50 ASC42-110 2 6~42 42 84 110 100 SC42 5.50
ABT50 ASC42-160 2 6~42 42 84 160 100 SC42 7.60

Unit: mm
