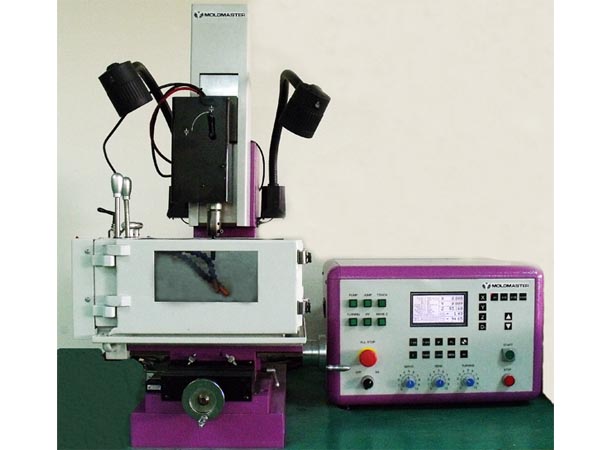

Mini-EDM
Mini-EDM
迷你放電加工機
Item | Model | Mini-EDM |
Work tank internal dimensions | W×D×H(mm) | 280×230×160 |
Max. workpiece dimensions | W×D×H(mm) | 170×100×140 |
Max. workpiece weight | kgs | |
| Max. electrode weight | kgs | |
| X、Y axes stroke | mm | 150×100 |
| Z axis stroke | mm | 200 |
| Setting unit increments | μm | 5 |
| Optical scale resolution | μm | 5 |
| Max. moving speed | mm/min | Z:1600 |
| Table dimensions | W×D(mm) | 170×100 |
| Distance between plate and table | mm | |
| Machine tool dimensions | W×D×H(mm) | |
| Control panel dimensions | W×D×H(mm) | 530×650×350 |
| Coal oil case dimensions | W×D×H(mm) | |
| Machine tool weight | kg | |
| Control panel weight | kg | |
| Coal oil case weight | kg | |
| Dielectric reservoir capacity | l | |
| Power capacity | KVA | 1.5/220V(1φ) |
Specification
