Feature
Upgraded discharging performance and supports highly fine finishing: High efficiency filtering results, can reduce the production of dusts, dirt, particles in dielectric, in order to achieve fast discharging, high precision, less roughness of surface.
Reduce equipment maintenance cost: Automatic flushing starts when set. It saves time comparing with traditional filter change.

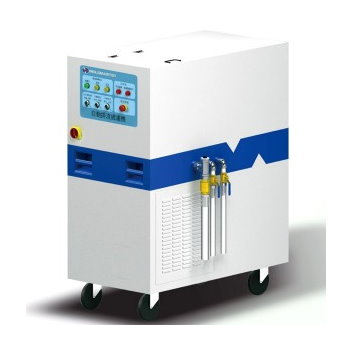

High mobility; Fixed or mobile. Mobile automatic back flushing system will support other EDM easily at any time with no hassle.
Customizable, provides multi EDM use.
Two minutes silent operation of back flushing, there will be no interference with current job.
Easy maintenance, just check and empty the dust bag at times. It is recommended to replace the core-filters after 10000~12500 hours.
Tidy working environment; Most of the time, the work place maybe polluted by those leaking dielectric during machine operation. By using the flushing system, the EDM and the environment can be kept tidy.
Machine Specification
| UNIT Number (Fixed / Mobile) | F61 / F61M | F37 / F37M | |
|---|---|---|---|
| Number of Core-Filters | pcs | 61 | 37 |
| Pressure | bar | 6 | 6 |
| Filter Bucket Capacity | L | 175 | 100 |
| Layout | 720 x 1350 | 720 x 1350 | |
| Filter Lifespan | hr | 12500 | 10000 |
| Filter Flow | L/sec | 4 | 2.5 |
| Filter Period | hr | 8 | 4 |
| Time of flushing within Filter Period | sec | 120 | 100 |
| Filterable Particles | μm | 1 | 1 |
| Electrical Specifications | KVA | 220V or 380V / 3Ø 2KVA | 220V or 380V / 3Ø 2KVA |
Machine Remark
Specification are subject to change without prior notice due to continual research and development.
Option
High Mobility: Fixed or mobile. Mobile automatic back flushing system will support other EDM easily at any time with no hassle.
Customizable, provides multi EDM use.
Two minutes silent operation of back flushing, there will be no interference with current job.
Easy maintenance, just check and empty the dust bag at times. It is recommended to replace the core-filters after 10000 ~ 12500 hours.
Tidy working environment: Most of the time, the work place maybe polluted by those leaking dielectric during machine operation. By using the flushing system, the EDM and the environment can be kept tidy.
