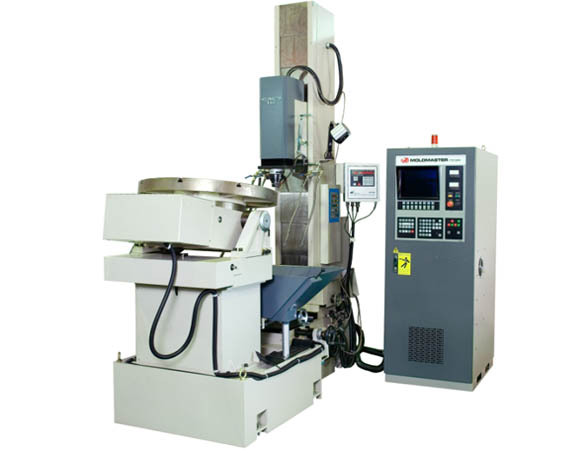

Tire EDM
Tire EDM
B600

I

Character Description




■ Specialized EDM for roller,round & tire mold.
■ Continuous machining by alternating with index and EDM.
■ X Axis travels 100mm,for adjusting center of mold.
■ Y Axis travels 500mm,for slant mold.
■ Z1 Axis travels 650mm,for mold size.
■ Z2 Axis travels 500mm,for dielectric work tank.
■ R Axis controlled by micro computer,accuracy reaches 1/1000 degree.
■ R1 Axis can be read by DRO for slant angle.

Specification


Item Model B-500 B-550 B-600 B-700 B-800
Travel  mm

      X=80

      Y=400

      Z=200

      Z1=270

       X=80

       Y=400

       Z=200

       Z1=300

       X=80

       Y=600

       Z=180

       Z1=1000

       O=380

       X=80

       Y=750

       Z=180

       Z1=1200

       O=500

       X=80

       Y=800

       Z=1800

       Z1=  _ _

       O=600
R Table φmm φ700 φ700 φ900 φ900 φ1300
Electrode Weight kg 80 80 100 100 150
Workpiece Weight kg 400 600 1000 2000 4000
Max. workpiece mm φ950×200 φ1100×200 φ1300×250 φ1800×350 φ2500×500
Dielectric reservoir mm 900×1530×400 1200×1830×400 1000×950×350 1060×2450×400 1060×2450×400
Dielectric capacity liters 400 600 300 500 600
Machine Weight kg 1050 1800 2200 2800 3600
Index plate   　 B-R320 B-R320D B-R500 B-R600

‧Specifications subject to change without prior notice.
