OX-2

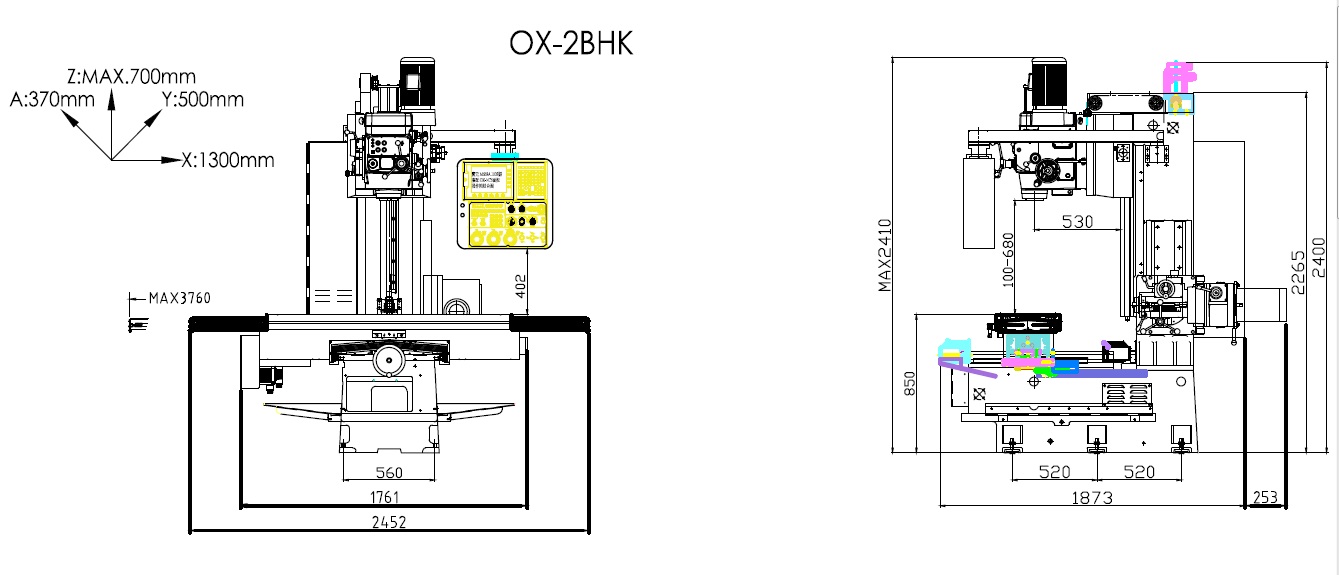

OX-2H (Z-AXIS GEAR TRANSMISSION)
Table size: 1500 x 400 mm
Longitudinal travel: 1300 mm
Cross travel: 530 mm
Y slide way width: 620 mm
Z Slide high: MAX 700 mm
Z Slide way width: 420 mm
Spindle taper: NT#40(BT)
Spindle motor: 5HP / 4P
Spindle speed: 70~3540 RPM
Feeding speed: 10~5000 mm/min
Ballscrew: Ø32 mm P=5 C5
Net weight: 3500 kgs
Specification
