OX-3

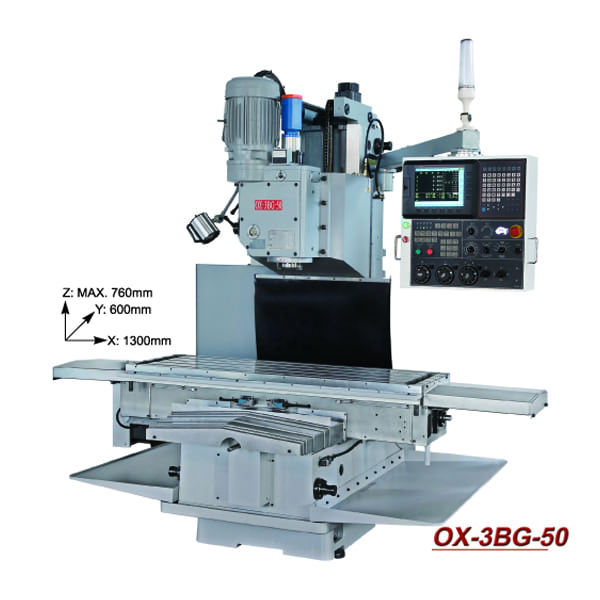

OX-3BG-50 (THREE-AXIS CNC CONTROL)
Table size: 1515 x 470 mm
Longitudinal travel: 1300 mm
Cross travel: 600 mm
Y slide way width: 720 mm
Z Slide high: MAX 760 mm
Z Slide way width: 420 mm
Spindle taper: NT#50(BT)
Spindle motor: 7.5HP / 2P
Spindle speed: 62~1100 RPM
Feeding speed: 10~6000 mm/min
Ballscrew: Ø32 mm C5
Net weight: 3200 kgs
Specification
