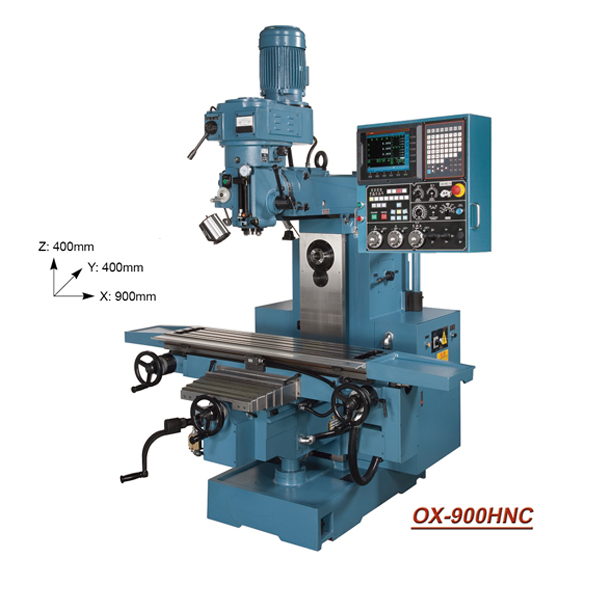

Vertical spindle speed:60~4000rpm
Horizontal spindle speed:60~2200rpm
Spindle taper:NT/BT #40
Swivel angle of head:45° (L&R)
Overarm travel:550mm
Quill travel:140mm
Distance of spindle to table:0~580mm
Distance of spindle center to column surface:140~750mm
Quill feed per revolution of spindle:0.035/0.07/0.14mm
Working table area (LxW):1250x290mm
Longitudinal travel manual/auto:900mm
Cross travel:400mm
Vertical travel of knee:400mm
T-slots:16x3x63.5mm
Cutting federate (X):0~1500mm / min
Rapid traverse (X):3000mm / min
Table elevating speed:1150mm / min
Vertical main spindle:3.7kw (5HP)AC
Horizontal main spindle:3.7kw (5HP)AC
Table elevating:0.75kw (1HP)
Lubricating pump:150w
Electromagnetic pump:40w
Machine measurement (LxWxH):1970x2100x2500mm
Packing measurement (LxWxH):2270x1850x2200mm
Net weight:2450kgs
Cross weight:2550kgs
