1. IK milling heads can upgrade or replacement your original machine body, milling machine or special machine.
2. Chrome quill with super precision preloaded bearing can bring the high quality cutting benifits for machine and we also offer P4 bearings for your optional.
3. Machining travel can up to 127mm (5").
4. This product offer NT30 or R8 two kind of spindle machine model for you to optional.
5. Offer table 254x1720mm、X.Y.Z travel 851x405x440mm turret milling machine body (whole body) for you to optional.
6. There are 11 models in IK Turret Milling Machine Head Series.
With ultra-precision pre-load bearings, can bring you high-quality cutting benefits, but also provide P4-class bearings for you to choose from

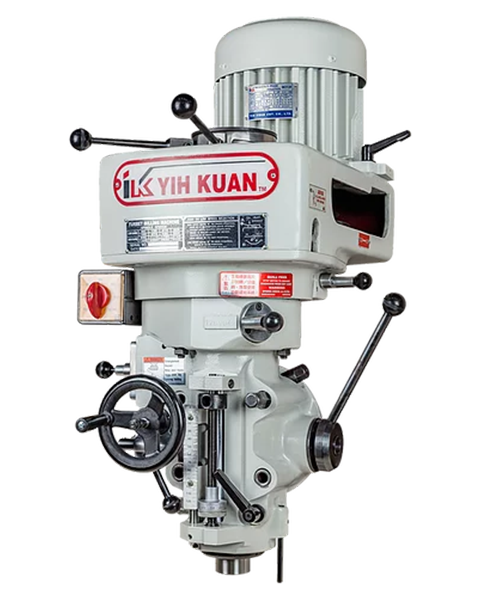

| MODEL | Unit | IK-3SA5 | |
|---|---|---|---|
| Type | Square | ||
| Spindle | |||
| Spindle Nose Type | NT30 | R8 | |
| Spindle Motor | hp | 3 | |
| Quill Travel | mm | 127(5”) | |
| Spindle Feeds Range | mm | Three Sections 0.076 (0.003”) 0.038 (0.0015”) 0.203 (0.008”) |
|
| Step of Spindle Speed | stage | 8 ~ 16 | |
| Spindle Speed | rpm | (L)80~2720 | |
| (H)660~5400 | |||
| STANDARD ACCESSORIES (● INCLUDE IN PRODUCT) | |||
| Spindle Nose Type | NT30 | R8 | |
| ● | - | ||
| - | ● | ||
| Spindle Motor | ● | ||
| Draw Bar | ● | ||
| OPTIONAL ACCESSORIES (○ APOLEGAMY) | |||
| Milling Machine Body (Whole Body) | ○ | ||
| · Table 254 x 1270 mm | |||
| · X.Y.Z Travel 851 x 405 x 440 mm | |||
| Country of Origin | Taiwan | ||
| Weight (Approximate) | kg | 91 | |
| Warranty | 1 year (non artificial mistake) | ||
