Turret Milling Head (Bridgeport Milling Head)
Step Speed Head

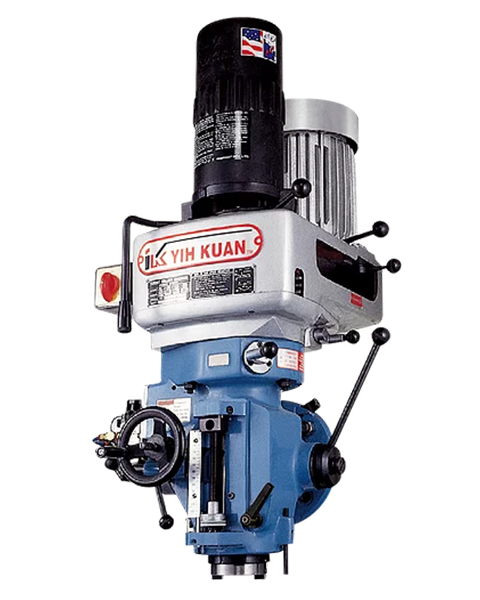

IK-4S1
1. IK milling heads can upgrade or replacement your original machine body, milling machine or special machine.
2. Chrome quill with super precision preloaded bearing can bring the high quality cutting benifits for machine and we also offer P4 bearings for your optional.
3. Machining travel can up to 127mm (5").
4. Offer air operated brake for you to optional.
5. There are 11 models in IK Turret Milling Machine Head Series.
Specification
| MODEL | Unit | IK-4S1 | |
|---|---|---|---|
| Spindle | |||
| Spindle Nose Type | NT40 | ||
| Spindle Motor | hp | 5 | |
| Quill Travel | mm | 127(5”) | |
| Spindle Outside Diameter | 100Φ Back Lock | ||
| Spindle Feeds Range | mm | Three Sections | |
| 0.076 | (0.003”) | ||
| 0.038 | (0.0015”) | ||
| 0.203 | (0.008”) | ||
| Step of Spindle Speed | stage | 8-16 | |
| Spindle Speed | rpm | (L)80-2720(H)660-5440 | |
| STANDARD ACCESSORIES (● INCLUDE IN PRODUCT) | |||
| Spindle Nose Type | NT40 | ||
| Spindle Motor | ● | ||
| Draw Bar | ● | ||
| OPTIONAL ACCESSORIES (○ APOLEGAMY) | |||
| Air Operated Brake | ○ | ||
| Country of Origin | Taiwan | ||
| Weight (Approximate) | kg | 130 | |
| Warranty | 1 year (non artificial mistake) | ||
