IK-E93A
1. Extend processing angle head suitablel in all type of milling heads, can change the processing angle and also bring the powerful and high-quality cutting benefits for machine.
2.This product uses for Japanese gear grinding, so the spindle speed can up to 2000rpm and also can bring the powerful and high-quality cutting benefits for machine.

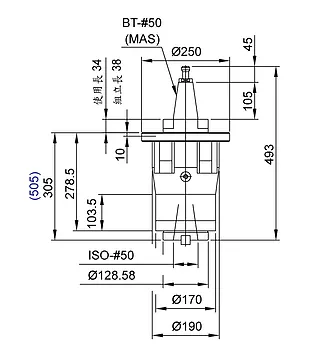

3. The milling length is 305mm.
4. There are 2 models in IK Extend Head series.
IK-E95A
1. Extend processing angle head suitablel in all type of milling heads, can change the processing angle and also bring the powerful and high-quality cutting benefits for machine.
2.This product uses for Japanese gear grinding, so the spindle speed can up to 2000rpm and also can bring the powerful and high-quality cutting benefits for machine.
3. The milling length is 505mm.
| Model | Unit | IK-E93A/IK-E95A |
|---|---|---|
| EXTEND HEAD | ||
| Spindle Bore Diameter | NT50 | |
| Speed Ratio | 1:1 | |
| Max Diameter of Cutter | mm | 150 |
| Max Speed | rpm | 2000 |
| Country of Origin | Taiwan | |
| Weight (Approximate) | kg | 75 |
| Warranty | 1 year (non artificial mistake) | |
