Flattening Machine

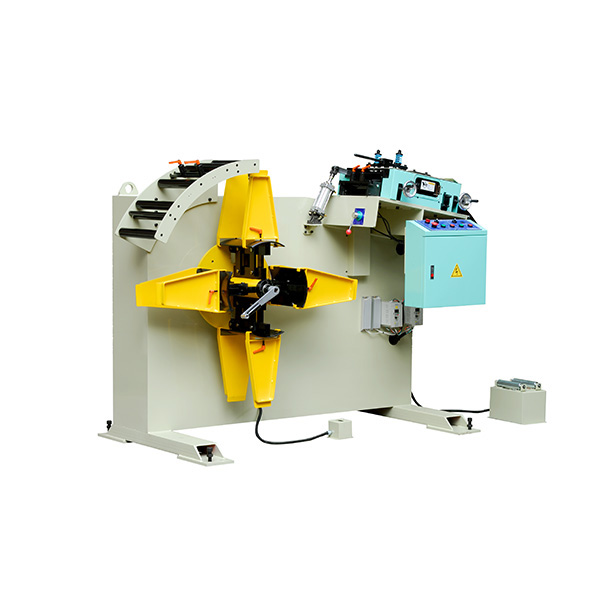

Uncoiler & Leveler Combination

•Used to 0.2-1.2mm thick material as stainless strip, copper strip and aluminum strip which required high surface and accuracy products.
•Pedestal designed upper roller set is convenient raised to clean.
•Combined uncoiler and straightener save space and increase space using flexible.
•Upper straightener used 2 set independent adjustable device to provide individual adjustment for convenient to process high-level required products.
•Individual transmit working roller to increase surface flatness.
•Upper straightener add one auxiliary roller which could adjust material curve direction to suit customer requirement.
•Working roll use bearing steel (SUJ2) with heat treating to HRC60°, hard chromate treatment then grinding again for high hardness, high wear-resisting and long lifetime.
•Also suit long cut-to-length system.
•Suit to all kinds of feeders.

Specification

二合一料架整平機 (FUL)
Precision Uncoiler & Leveler Combination (FUL Type)

產品型號 Model

FUL-200

FUL-300

FUL-400

FUL-500

FUL-600

最大材料寬度 Max. material width (mm)

200

300

400

500

600

材料厚度 Material thickness (mm)

A:0.2~1.2 B:0.2~1.0

料架荷重 Max. coiler weight (kg)

1200

1500

整平馬達 Straighten motor (HP)

1

2

捲料內徑 Coil inside diameter (mm)

450~530

最大捲料外徑 Max. coil outside diameter (mm)

1200

整平速度 Straighten speed (m/min)

20

整平滾輪直徑 Straighten roller diameter (mm)

A:30*19 B:20*19 (Upper10/Lower11)

料架方式 Uncoiler method

主動式 Master

擴張方式 Expansion method

手動式 Manual

* 選配項目: 1.整平機出料感應為光電 2.整平馬達由變頻器驅動 3.料架馬達由變頻驅動 4.料架被動 5.傳動輪 PU 6.油壓擴張

  • * Option1.Material optical sensor. 2.Straighten motor inverter. 3.Uncoiler motor inverter 4.Uncoiler passive 5.PU roller 6.Hydraulic expansion.
