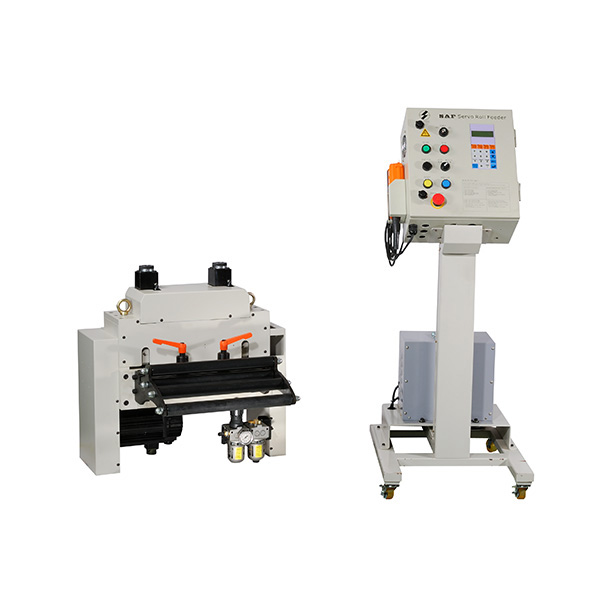

SAF Roll Feeder (NC Roll Feeder)

Feeder

SAF Roll Feeder (NC Roll Feeder)

•High-precision feeding: Aiming at the arrival of hi-tech industry, it is using close-loop feedback control computer system and high resolution encoder to make feeding precision within ±0.03mm.
•Programmable feeding function: Provide max.40 groups of different feeding length, each group provide 999 times punching to satisfy the special manufacture process.
•Humane manual mode: Can input 3 different manual speeds to provide user operate more easily and feed materials more accuracy.
•High efficiency release device: Quickly set up release angle base on press is Cam signal and simply material thickness adjustment.
•Control panel function: Designed feed length, count, speed & angle function key for quickly setting. Feed length from 0.01mm to 9999.99mm.
•Feeding unit: The rollers adopt middle hollow style to be light and low inertia for electroplate. Roller surface hardness is HRC60° and hard chromium plated to extend lifetime.
•Suit to different thickness and width for long feed length product.

Specification

SAF 滾輪送料機 SAF Roll Feeder
產品型號 Model	SAF-				SAF-				SAF-
產品型號 Model	100A	100M	100H	100P	200A	200M	200H	200P	300A	300M	300P
最大材料寬度 Max. material width (mm)	100				200				300
材料厚度 Material thickness(mm)	0.1~2.0								0.1~3.0
材料線高度 Material line height(mm)	60~160								70~170
放鬆方式 Release	氣壓式 Pneumatic	機械式 Mechanical		氣壓式/ 機械式 Pneu/Mech	氣壓式 Pneumatic	機械式 Mechanical		氣壓式/ 機械式 Pneu/Mech	氣壓式 Pneumatic	機械式 Mechanical	氣壓式/ 機械式 Pneu/Mech
訊號源 Signal input	Cam	Cam or Encoder	Encoder	Cam or Encoder	Cam	Cam or Encoder	Encoder	Cam or Encoder	Cam	Cam or Encoder	Cam or Encoder
最大送料速度 Max. SPM	200	600	1200	程式型 Program	200	600	1200	程式型 Program	200	600	程式型 Program
使用電源 Power	1 ∮, 220VAC, 50/60Hz

產品型號 Model	SAF-
產品型號 Model	400A	400P	500A	500P	600A	600P	700A	700P	800A	800P
最大材料寬度 Max. Material Width(mm)	400		500		600		700		800
材料厚度 Material thickness(mm)	0.1~3.0
材料線高度 Material line height(mm)	70~170
放鬆方式 Release	氣壓式 Pneumatic	氣壓式/機械式 Pneu/Mech	氣壓式 Pneumatic	氣壓式/機械式 Pneu/Mech	氣壓式 Pneumatic	氣壓式/機械式 Pneu/Mech	氣壓式 Pneumatic	氣壓式/機械式 Pneu/Mech	氣壓式 Pneumatic	氣壓式/機械式 Pneu/Mech
訊號源 Signal input	Cam	Cam or Encoder	Cam	Cam or Encoder	Cam	Cam or Encoder	Cam	Cam or Encoder	Cam	Cam or Encoder
最大送料速度 Max. SPM	200	程式型 Program	200	程式型 Program	200	程式型 Program	200	程式型 Program	200	程式型 Program
使用電源 Power	1 ∮, 220VAC, 50/60Hz
