Flattening Machine

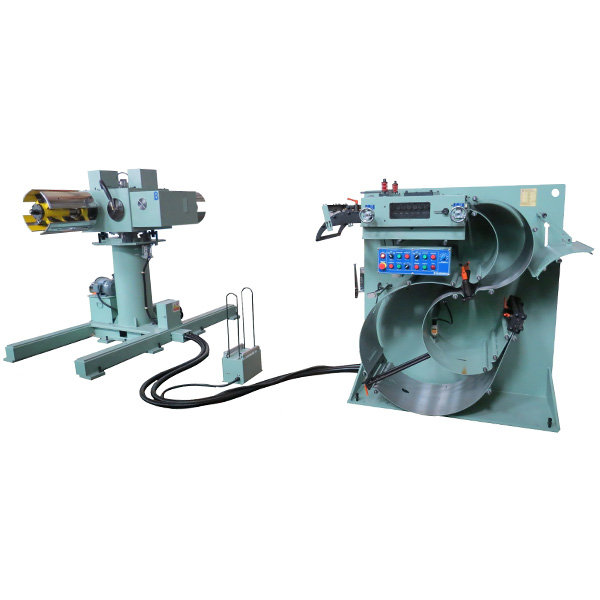

Synchronous Uncoiler Leveler

•High speed dual heads uncoiler, easy operate to work with high speed press.
•S or U type material guide system adopt optical signal, PC and inverter to control process speed to synchronous press speed. Max. speed up to 60M per minute.
•When use Cam feeder composed with highly precision indexing Cam,feeding speed can reach 60M/minute within ±0.05mm accuracy.(Option)
•Dual heads uncoiler can turn 180°, also can choice hydraulic expansion cradle for operate easily and improve efficiency. (Option)
•Dual heads uncoiler can ODM to move right and left based on customer requirement. (Option)

Specification

二合一料架整平機
Uncoiler & Leveler Combination

產品型號 Model

SUL-200

SUL-300

SUL-400

SUL-500

最大材料寬度 Max. material width (mm)

200

300

400

500

材料厚度 Material thickness (mm)

0.3~0.6

材料荷重 Max. coil weight (kg)

1000 * 2

2000 * 2

3000 * 2

整平馬達 Straighten motor Motor(HP)

2

3

5

5

捲料內徑 Coil inside diameter (mm)

450~530

捲料外徑 Coil outside diameter (mm)

1200

整平速度 Material Speed (m/min)

0 ~ 60

料架方式 Uncoiler method

被動式 Uncoiler passive

擴張方式 Expansion method

手動擴張 Manual

感應方式 Coil sensor

光電感應 Optical sensor
