QUICK CHANGE TAP COLLETS (WITH OVERLOAD CLUTH & TYPE RIGID)

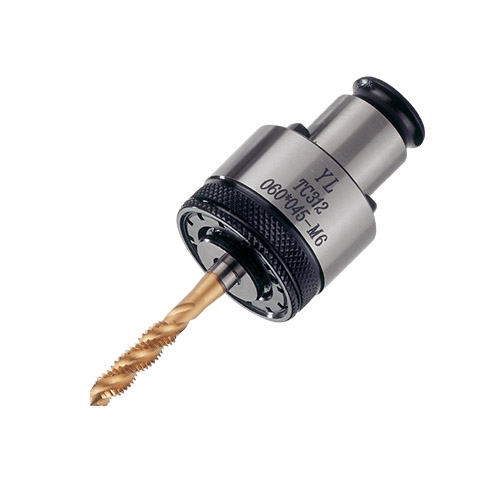

TC QUICK CHANGE TAP COLLETS (WITH OVERLOAD CLUTCH)

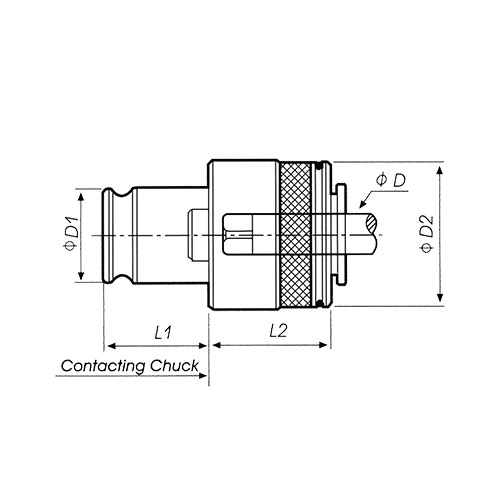

Specification
| Part No. | Capacity | øD1 | øD2 | L1 | L2 |
| TC 312 | M2~M14 | 19.0 | 32.0 | 21.5 | 25.0 |
| TC 820 | M6~M24 | 31.0 | 50.0 | 35.0 | 34.0 |
| TC 1433 | M14~M36 | 48.0 | 72.0 | 55.5 | 45.0 |
TAP COLLETS, TYPE JIS
| JIS Tap | Tap Shank | Order No. | |||||
| Shank diameter øD | Square orifice □ | TC 312 (#1) | TC 820 (#2) | TC 1433 (#3) | |||
| M2 | 3.0 | 2.5 | 010-00 | ||||
| M3 | #5,#6 | 4.0 | 3.2 | 010-01 | |||
| M4 | M4.5 | #8 | 5.0 | 4.0 | 010-02 | ||
| M5 | M5.5 | #10 | 5.5 | 4.5 | 010-03 | ||
| M6 | UNC1/4 | 6.0 | 4.5 | 010-04 | 020-00 | ||
| UNC5/16 | 6.1 | 5.0 | 010-05 | ||||
| M8 | M7 | 6.2 | 5.0 | 010-06 | 020-01 | ||
| M10 | M9 | UNC3/8 | 7.0 | 5.5 | 010-07 | 020-02 | |
| M11 | UNC7/16 | 8.0 | 6.0 | 010-08 | 020-03 | ||
| M12 | 8.5 | 6.5 | 010-09 | 020-04 | |||
| UNC1/2 | 9.0 | 7.0 | 010-10 | 020-05 | |||
| M14 | M15 | UNC9/16 | 10.5 | 8.0 | 010-11 | 020-06 | 030-01 |
| UNC5/8 | 12.0 | 9.0 | 020-07 | 030-02 | |||
| M16 | 12.5 | 10.0 | 020-08 | 030-03 | |||
| M18 | UNC3/4 | 14.0 | 11.0 | 020-10 | 030-05 | ||
| M20 | 15.0 | 12.0 | 020-11 | 030-06 | |||
| M22 | UNC7/8 | 17.0 | 13.0 | 020-12 | 030-07 | ||
| M24 | M25 | 19.0 | 15.0 | 020-13 | 030-08 | ||
| M27 | M26 | UNC1 | 20.0 | 15.0 | 030-09 | ||
| M28 | 21.0 | 17.0 | 030-10 | ||||
| UNC1 1/8 | 22.0 | 17.0 | 030-11 | ||||
| M30 | 23.0 | 17.0 | 030-12 | ||||
| M32 | UNC1 1/4 | 24.0 | 19.0 | 030-13 | |||
| M33 | 25.0 | 19.0 | 030-14 | ||||
| M35 | M34 | UNC1 3/8 | 26.0 | 21.0 | 030-15 | ||
| M36 | 28.0 | 21.0 | 030-16 | ||||
| PT1/8 | 8.0 | 6.0 | 010-12 | 020-14 | |||
| PT1/4 | 11.0 | 9.0 | 010-13 | 020-15 | 030-17 | ||
| PT3/8 | 14.0 | 11.0 | 020-16 | 030-18 | |||
| PT1/2 | 18.0 | 14.0 | 020-17 | 030-19 | |||
| PT3/4 | 23.0 | 17.0 | 030-20 | ||||
| PT1 | 26.0 | 21.0 | 030-21 | ||||
