Specification
| Description / Code No. | Type | Capacity | N.W. (kg) | |
| mm | inch | |||

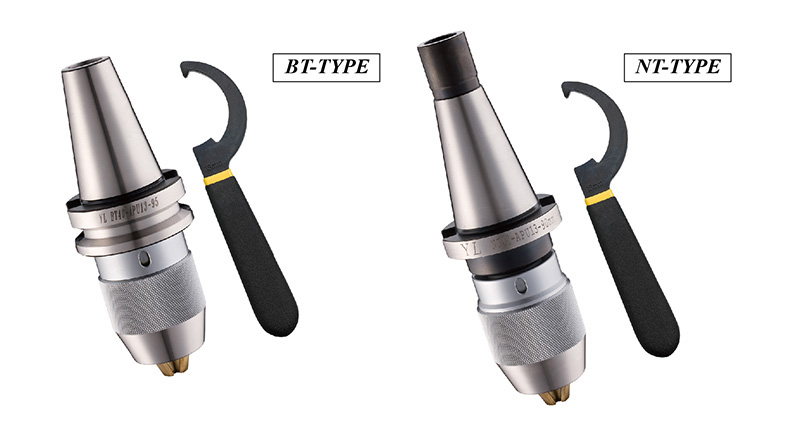

| 103008 | BT30-APU08-80 | 0.3-8 | 1/64-5/16 | 1.0 |
| 103013 | BT30-APU13-110 | 0.3-13 | 1/64-1/2 | 1.5 |
| 104008 | BT40-APU08-85 | 0.3-8 | 1/64-5/16 | 1.3 |
| 104013 | BT40-APU13-95 | 0.3-13 | 1/64-1/2 | 2.0 |
| 104016 | BT40-APU16-130 | 3-16 | 1/8-5/8 | 2.6 |
| 105013 | BT50-APU13-110 | 0.3-13 | 1/64-1/2 | 4.4 |
| 105013-1 | BT50-APU13-180 | 0.3-13 | 1/64-1/2 | 5.2 |
| 105016 | BT50-APU16-130 | 3-16 | 1/8-5/8 | 4.8 |
| 113008 | NT30-APU08-80 | 0.3-8 | 1/64-5/16 | 1.0 |
| 113013 | NT30-APU13-100 | 0.3-13 | 1/64-1/2 | 1.5 |
| 114008 | NT40-APU08-85 | 0.3-8 | 1/64-5/16 | 1.2 |
| 114013 | NT40-APU13-90 | 0.3-13 | 1/64-1/2 | 1.8 |
| 114016 | NT40-APU16-130 | 3-16 | 1/8-5/8 | 2.2 |
| 115013 | NT50-APU13-120 | 0.3-13 | 1/64-1/2 | 2.5 |
| 115016 | NT50-APU16-130 | 3-16 | 1/8-5/8 | 2.8 |

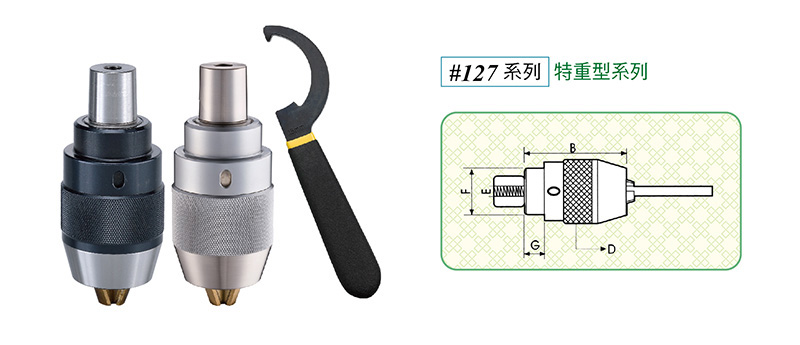

TOOL SHANK TYPE
Multi-choices of mounting specification offers quick changeover on machining center.
|
Description / Code No. |
Type | Capacity | Male Taper |
B mm |
D mm |
E mm |
F mm |
G mm |
Weight (g) |
|
| mm | inch | |||||||||
| 12708 | 8S | 0.3-8 | 1/64-5/16 | MT2 | 60.5 | 37.5 | M6P1.0 | 30 | 10 | 398 |
| 12713 | 13S | 0.3-13 | 1/64-1/2 | MT3 | 80.5 | 50.5 | M8P1.25 | 38 | 15 | 958 |
| 12716 | 16S | 3-16 | 1/8-5/8 | MT3 | 85 | 57 | M8P1.25 | 43 | 16 | 1252 |
