PRECISION POWERFUL MILLING CHUCK
PRECISION POWERFUL MILLING CHUCK
Accuracy : Concentricity 0.005mm at holder nose and 0.01mm(TIR). at 100mm from nose.
Special design of dust-proof prevents the milling chucks from locking and extends 50% or more lifetime of tool holders.
Caution:Excessive tightening force will damage the chuck,nut and collet.

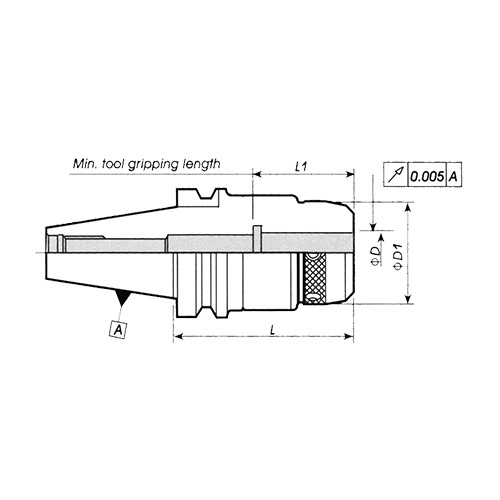

Specification
|
Description /Code No. |
Type | L | øD | øD1 |
| 21400 | BT40-C20-85 | 85 | 20 | 52 |
| 21401 | BT40-C32-105 | 105 | 32 | 69 |
| 21402 | BT40-C32-135 | 135 | 32 | 69 |
| 21403 | BT50-C20-105 | 105 | 20 | 52 |
| 21404 | BT50-C32-110 | 110 | 32 | 69 |
| 21405 | BT50-C32-135 | 135 | 32 | 69 |
| 21407 | BT50-C42-110 | 110 | 42 | 86 |
| 21408 | BT50-C42-135 | 135 | 42 | 86 |
