Features

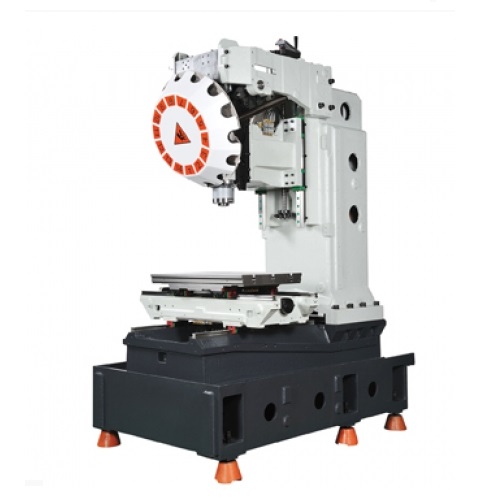

High speed drilling & tapping machine.
High speed feed-rate and repeatability accuracy are guaranteed.
Rapid feeding for high precision drilling & tapping.
High speed linear guide ways for X, Y, Z axes to accomplish high rigidity.
Applicable to precision electronic components.
Turret type ATC – The fast, simple and long-life automatic tool changer provides stable and reliable tool change.
Applications
Auto parts.light alloy formed parts machining.
IT components&3C industries processing applications.
Super finishing&round chamfering.
Small hole drilling performance being decreased to 0.1mm.
Specifications
| MODEL | UNIT | AP500 |
|---|---|---|
| Table | ||
| Table size | mm | 600x400 |
| T slots | mm | 14x3x125 |
| Travel | ||
| X/Y/Z - axis travel | mm | 500/400/300 |
| Spindle nose to table surface | mm | 130~430 |
| Spindle center to column | mm | 410 |
| Spindle | ||
| Spindle speed | kg | 300 |
| Transmission | rpm | Direct Driving / 1000 |
| Spindle taper | - | BT-30 |
| Spindle motor | kw | 3.7/5.5 |
| Feed | ||
| X-Y-Z motor(Fanuc) | kw | 1.2/1.2/2.8 |
| X-Y-Z motor(Mitsubishi) | kw | 1.5/1.5/2.0 |
| X-Y-Z Rapid travel | m/min | 48/48/36 |
| Rail Type | ||
| Rail Type | - | 3-axes Linearways |
| ATC System | ||
| Magazine type | - | Turret Type |
| Tool no. | pcs | 14T |
| Max.tool length | mm | 200 |
| Max.tool weight | kg | 3 |
| Tool to tool change time | sec | 1.8 |
All specifications&design are subject to change without prior notice.
Option
4th Axis Rotary Table (OPT) & 5th Tilting Table
- This rotary table boosts productivity by allowing more machining options with a single setup.
Spindle Oil Cooling System (OPT)
- The spindle oil cooling device is adopted sufficiently cool down when high speed spindle running, to reduce spindle thermal deformation and beneficial high speed accuracy.
Disc Oil/coolant Separator (OPT)
- Utilized for efficiently separates the oil from the coolant tank, which shall not effect the coolant oil quality, and workpiece accuracy can be increased.
Chain Type Chip Conveyor (OPT)
- Compact design but sufficient removal the chips to the left side of machines.
