Specification

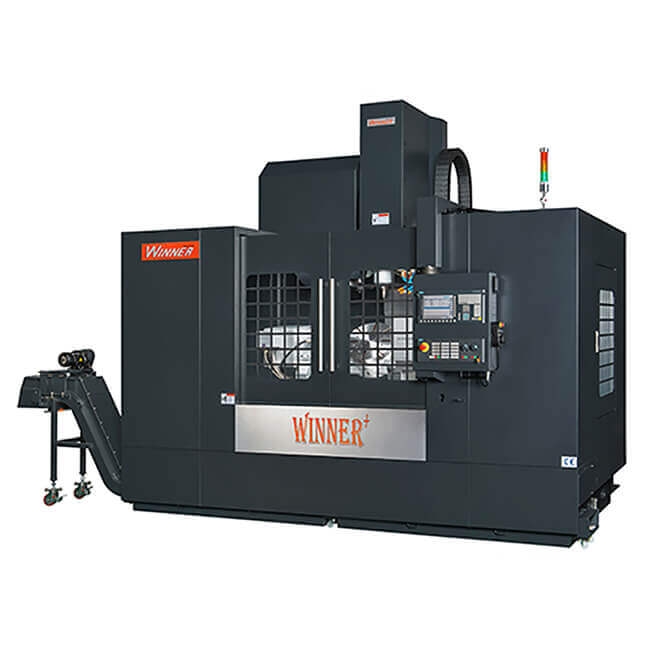

| MODEL | UNIT | VMC-E1400 |
|---|---|---|
| Table | ||
| Table size | mm | 1500x710 |
| T slots | mm | 18x7x100 |
| Travel | ||
| X/Y/Z - axis travel | mm | 1400/700/700 |
| Spindle nose to table surface | mm | 120~770 |
| Spindle center to column | mm | 750 |
| Max. table load | kg | 600 |
| Spindle | ||
| Spindle speed | kg | 8000 |
| Transmission | rpm | (Direct / Built-in) |
| Spindle taper | - | BT-40 |
| Spindle motor | kw | 15/18.5 |
| Feed | ||
| X-Y-Z motor(Fanuc 0i-MD) | kw | 3.5/3.5/3.5 |
| X-Y-Z Rapid travel | m/min | 36/36/20 |
| Rail Type | ||
| Rail Type | - | - |
| ATC System | ||
| Magazine type | - | - |
| Tool no. | pcs | 24T |
| Max.tool | (φ) mm | 80 |
| Max.tool length | mm | 300 |
| Equipped with Counter Weight | - | ("NO Counter Weight" for Direct Drive) |
All specifications&design are subject to change without prior notice.
