Features

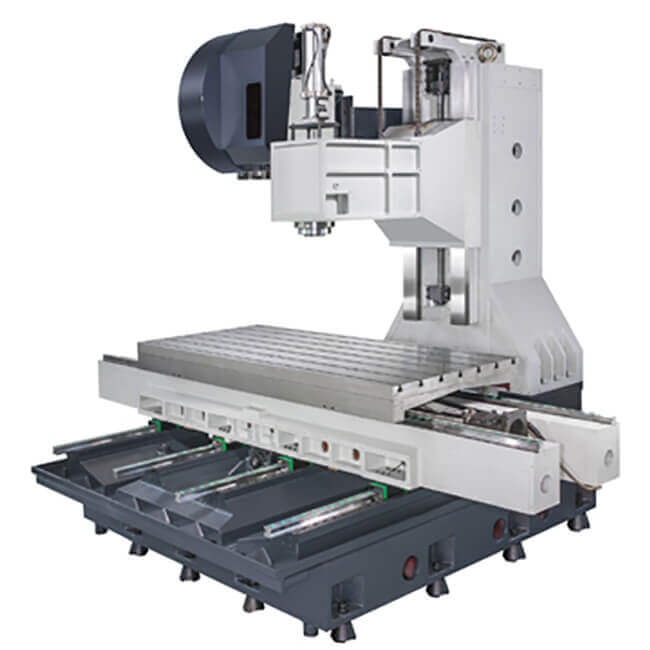

X/Y axes adopt heavy duty linear ways for E type machine but Z axis boxway which has been precisely ground by handcraft ; Not only to guarantee the smoothly movement on X-Y axes, but also not losing any rigidity consideration of while Z-axis machining and moving of its work head.
A central rod guides the counterweight. It ensures no vibration effect for Z axis high speed feed-rate and cutting accuracy.
High rigid (ball-screw) provides reliable transmission for high speed processing.
Superior rigidity structural offers to achieving precision and lasting performance in heavy cutting applications.
The spindle adopts super precision angular contact ball bearings. Spindle speed 8000rpm is standard ; 12000rpm direct-drive spindle can be optional.
| MODEL | UNIT | E1800 | E1900 |
|---|---|---|---|
| Table | |||
| Table size | mm | 1970x1000 | 2050x1000 |
| T slots | mm | 18x7x120 | 18x7x150 |
| Max. table loading | kg | 3000 | 3000 |
| Travel | |||
| X/Y/Z - axis travel | mm | 1800/900/800 | 1900/900/800 |
| Spindle nose to table surface | mm | 100~900 | 100~900 |
| Spindle | |||
| Spindle transmission | Belt type | Belt type | |
| Spindle taper | BT-50 | BT-50 | |
| Spindle speed | rpm | 6000 | 6000 |
| Spindle motor | kw | 22/26 | 22/26 |
| Feed | |||
| X-Y-Z MOTOR(Fanuc) | kw | 7/7/7 | 7/7/7 |
| X-Y-Z motor(Mitsubishi) | kw | 4.5/4.5/4.5 | 4.5/4.5/4.5 |
| X-Y-Z Rapid travel | m/min | 15/15/15 | 15/15/15 |
| X-Y-Z Cutting feed rate | m/min | 8 | 8 |
| ATC System | |||
| ATC type. | Arm type | Arm type | |
| Magazine capacity | pcs | 24T | 24T |
| Max.tool diameter | Ø(mm) | Ø125 | Ø125 |
| Max.tool length | mm | 300 | 300 |
| Max.tool weight | kgs | 15 | 15 |
| Rail Type | |||
| Rail Type | - | E Series:Z-boxway;X-Y linearways/Y-axis 4 guideways | |
| Dimensions&others | |||
| Power consumption | KVA | 30 | 30 |
| Air pressure required | kfg/CM² | 6-8 | 6-8 |
| Floor occupation | cm | 580x510x370 | 610x520x370 |
| Machine weights | kg | 20000 | 20000 |
All specifications&design are subject to change without prior notice.
