Angle Head

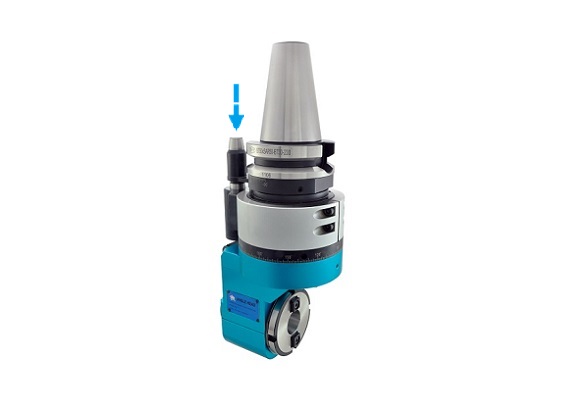

SAR Angle Head Holder
SAR
For heavy-duty cutting
● Coolant feed through dowel pin into the body, coolant outlet from a coolant nozzle.
● Maximum revolution: 3000rpm
● Maximum torque: 50N･m
● Recommended cutting depth ≤ 4mm
● Maximum coolant pressure: 7kgf/cm2
● Workable for ATC automatic tool change system
● Direction of rotation: same as machine spindle
● Gear ratio 1:1
Specification
SAR ANGLE HEAD HOLDER FOR HEAVY-DUTY CUTTING
| MODEL NO. | TYPE | L | S | TORQUE | WEIGHT (KGS) |
|---|---|---|---|---|---|
| 12.643 | BT50 x SAT50 / SBT30 - 230 | 230 | 80 | 50 N-m | 16.1 |
| 12..643S | BT50 x SAT50 / SBT30 - 230S | 230 | 110 | 50 N-m | 16.1 |
| 27.643 | SBT50 x SAT50 / SBT30 - 230 | 230 | 80 | 50 N-m | 16.1 |
| 27.643S | SBT50 x SAT50 / SBT30 - 230S | 230 | 110 | 50 N-m | 16.1 |
| 32.643 | CAT50 x SAT50 / SBT30 - 230 | 234.95 | 80 | 50 N-m | 16.1 |
| 32.643S | CA50 x SAT50 / SBT30 - 230S | 234.95 | 110 | 50 N-m | 16.1 |
| 44.643 | SCAT50 x SAT50 / SBT30 - 230 | 234.95 | 80 | 50 N-m | 16.1 |
| 44.643S | SCA50 x SAT50 / SBT30 - 230S | 234.95 | 110 | 50 N-m | 16.1 |
| 52.643 | DAT50 x SAT50 / SBT30 - 230 | 235 | 80 | 50 N-m | 16.1 |
| 52.643S | DA50 x SAT50 / SBT30 - 230S | 235 | 110 | 50 N-m | 16.1 |
| 67.643 | SDAT50 x SAT50 / SBT30 - 230 | 235 | 80 | 50 N-m | 16.1 |
| 67.643S | SDA50 x SAT50 / SBT30 - 230S | 235 | 110 | 50 N-m | 16.1 |
