Drilling Machine
High Precision Drilling Machine
KSD-13,16,25,32
Highly Efficient ; Precision ; Stable and Noiseless !

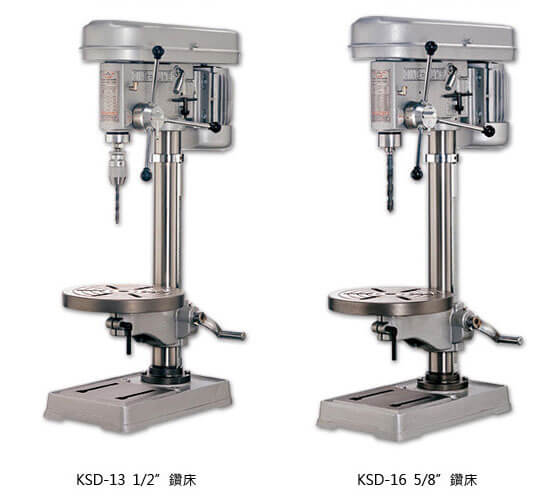

KSD-13 1/2" Drilling machine
KSD-16 5/8" Drilling machine

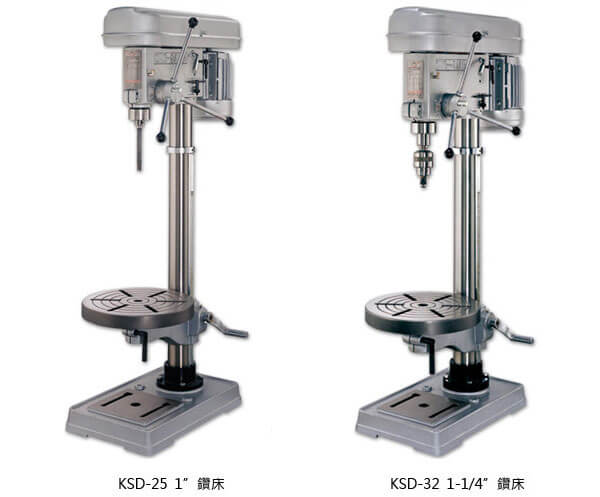

KSD-25 1" Drilling machine
KSD-32 1-1/4" Drilling machine
Specification
FEATURES
- Fast feed. Accurate drilling depth & minimum noise.
- The machine is manufactured from high quality cast iron (FC 25), featuring maximum durability and wear resistance.
- The quill is manufactured from ductile iron with high oil content for maximum wear resistance.
unit : mm
| MODEL | KSD-13 | KSD-16 | KSD-25 | KSD-32 | |
| A | Diameter of quill | Ø52 | Ø65 | Ø80 | Ø95 |
|---|---|---|---|---|---|
| B | Spindle taper | JT 6# (1/2) | MT 2# | MT 3# | MT 3# (MT 4#) |
| C | Spindle step | 4 | 9 | 9 | 9 |
| D | Spindle travel | 85 | 85 | 115 | 140 |
| E | Spindle to column | 175 | 175 | 215 | 230 |
| F | Spindle to table | 430 | 460 | 660 | 630 |
| G | Spindle to base | 610 | 640 | 950 | 930 |
| H | Drilling capacity | Ø3-Ø13 | Ø3-Ø16 | Ø6-Ø25 | Ø8-Ø32 |
| J | Cover sizes | 608x214x110 | 608x214x110 | 727x255x137 | 725x262x157 |
| K | Column diameter | Ø80 | Ø80 | Ø92 | Ø102 |
| L | Table diameter | Ø320 | Ø320 | Ø380 | Ø420 |
| M | Base sizes | 500x300 | 500x300 | 615x380 | 615x385 |
| N | Speed 50Hz | 500-2300 | 270-3380 | 170-2100 | 120-1500 |
| Speed 60Hz | 600-2750 | 320-4000 | 200-2500 | 135-1700 | |
| O | Motor | 1/2; 1(HP) | 1/2; 1(HP) | 1; 2(HP) | 2(HP) |
| P | Machine sizes | 680x325x1085 | 680x325x1085 | 780x380x1510 | 840x420x1545 |
| Q | Machine weight | 90kg | 95kg | 154kg | 205kg |
Hexangular collets and chucks and other accessories are not included for the above machine products / King Sang Machines.
Drilling Machine Parts Drawing
