Universal Drilling Milling Complex Machine

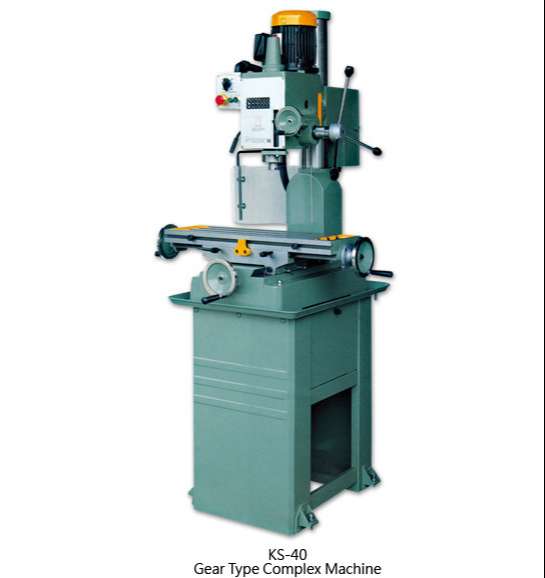

KS-40 Gear Type Complex Machine
KS-40
Highly Efficient ; Precision ; Stable and Noiseless !
KS-40 Gear Type Complex Machine
FEATURES
Designed for various operations, such as vertical milling, end milling, face milling and drilling (Tapping function is optional).
Specification
| MODEL | KS-40 | |
| Quill Dia. | 75 | |
|---|---|---|
| Spindle Taper | MT 3# | |
| Quill travel | 120 | |
| Drilling capacity | Cast Iron | 40 (1-9/16") |
| Steel | 32 (1-1/4") | |
| Face Milling capacity | 76 (3") | |
| End Milling capacity | 32 (1-1/4") | |
| Spindle nose to table | 480 | |
| Column Dia. | 110 | |
| Swing | 550 (275x2) | |
| Head Swivel | 90° R&L | |
| Cross travel of table | 285 | |
| Longitudinal travel of table | 410 | |
| Speed | 50Hz | 50-1250 |
| 60Hz | 60-1500 | |
| Motor | 1HP 4Pole | |
| T-Slot size | 16 | |
| Table surface | 730 x 210 | |
| Measurement | 780 x 850 x 1165 | |
| Machine N.W. | 310 kg | |
| Cabinet stand | 830 x 570 x 240/NW:50Kg | |
Hexangular collets and chucks and other accessories are not included for the above machine products / King Sang Machines.
