Drilling Machine
Precision semi-auto drilling machine
KSA-16B,25B
Highly Efficient ; Precision ; Stable and Noiseless !

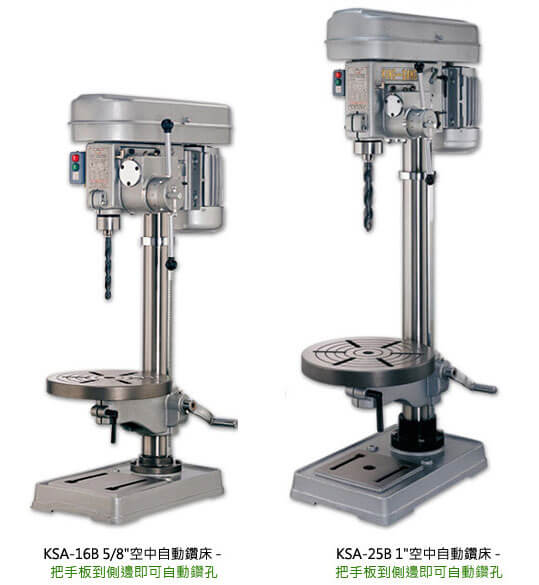

KSA-16B 5/8" Release Feed Automatic Drilling Machine
KSA-25B 1" Release Feed Automatic Drilling Machine
Specification
FEATURES
When the automatic or semi-automatic drilling is equipped with coolant tank (Refer to P.25 KS-3M coolant tank), one operator can operate several drilling machines. It provides effortless operation while greatly increasing efficiency.
unit : mm
| MODEL | KSA-16B | KSA-25B | |
| A | Diameter of quill | Ø65 | Ø95 |
|---|---|---|---|
| B | Spindle taper | MT 2# | MT 3# (MT 4#) |
| C | Spindle step | 4 | 6 |
| D | Spindle travel | 100 | 140 |
| E | Spindle to column | 175 | 230 |
| F | Spindle to table | 420 | 630 |
| G | Spindle to base | 620 | 930 |
| H | Drilling capacity | Ø4-Ø16 | Ø8-Ø25 |
| J | Cover sizes | 608x214x125 | 725x262x157 |
| K | Column diameter | Ø80 | Ø102 |
| L | Table diameter | Ø320 | Ø420 |
| M | Base sizes | 500x300 | 615x385 |
| N | Speed 50Hz | 450-1700 | 180-1400 |
| Speed 60Hz | 550-2000 | 220-1650 | |
| O | Motor | 1/2; 1 ; 2 (HP) | 2 (HP) |
| P | Machine sizes | 650x410x1090 | 810x450x1545 |
| Q | Machine weight | 105kg | 210kg |
Hexangular collets and chucks and other accessories are not included for the above machine products / King Sang Machines.
Automatic Drilling Machine Parts Drawing
