Steel Clamping Kit

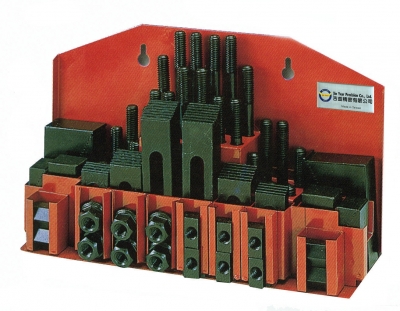

52-PCS STEEL CLAMPING KIT
CK系列
Standard Accessory：
1. Clamping Studs 24 pcs；4 ea. 3", 4", 5", 6",7", 8" or 4 ea. 75, 100, 125, 150, 175, 200mm
2. T-Nuts 6pcs
3. Flange Nuts 6pcs
4. Coupling Nuts 4pcs
5. Step Clamps 6pcs
6. Step Blocks 6pcs
7. The parts of every specification all can be purchased individually
Specification
|
INCH SIZE： |
|||
| MODEL | Table Slot (B) | Stud Size (A) | G.W. (kg) |
| CK-103A | 7/16" | 3/8"-16W | 7 |
| CK-103B | 1/2" | 7 | |
| CK-104A | 9/16" | 1/2"-12W | 9.5 |
| CK-104B | 5/8" | 1/2"-12W | 10 |
| CK-105A | 11/16" | 5/8"-11W | 13 |
| CK-105B | 3/4" | 13 | |
| CK-206A | 13/16" | 3/4"-10W | 25 |
| CK-206B | 7/8" | 25 | |
|
METRIC SIZE (mm)： |
|||
| MODEL | Table Slot (B) | Stud Size (A) | G.W. (kg) |
| CK-08 | 10 | M8-1.25P | 7 |
| CK-10 | 12 | M10-1.5P | 10 |
| CK-12A | 14 | M12-1.75P | 9.5 |
| CK-12B | 16 | 10 | |
| CK-14 | 16 | M14-2.0P | 11 |
| CK-16 | 18 | M16-2.0P | 13 |
| CK-18 | 20 | M18-2.5P | 25 |
| CK-20 | 22 | M20-2.5P | 26 |
