Axial Preset Gauge / Edge Finder

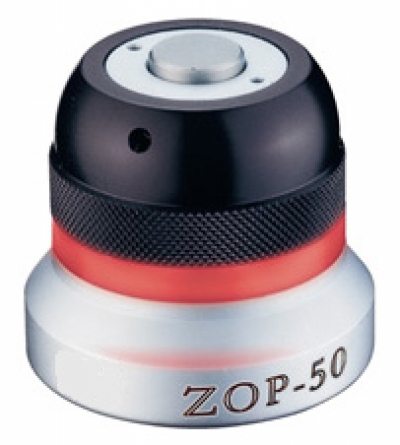

Z AXIAL PRESET GAUGE (OPTICAL TYPE)
ZOP-50

Specification

Z AXIAL PRESET GAUGE (OPTICAL TYPE)

MODEL HEIGHT Weight
ZOP-50 50±0.005 0.64KG
FEATURES:
Height 50mm, easy calculation.
Magnetic base design, offering the side measuring function.
When the red light is on, everywhere can be seen; no blind spots.
Precision 0.005mm.
OPERATION METHODS:
1. The micro-adjusting structure is installed below the measuring face. Use the parallel gauge when conducting the height adjusting.
2. High precision products are not suitable for caliper measuring.
3. When the light of fast tooling room is on, please draw a litter back to wait off of the light, and slowly move forward until the light is on again, thus ensuring the correct precision.
4. When conducting the side measuring, please use the highest point of the blade to contact the measuring face.
