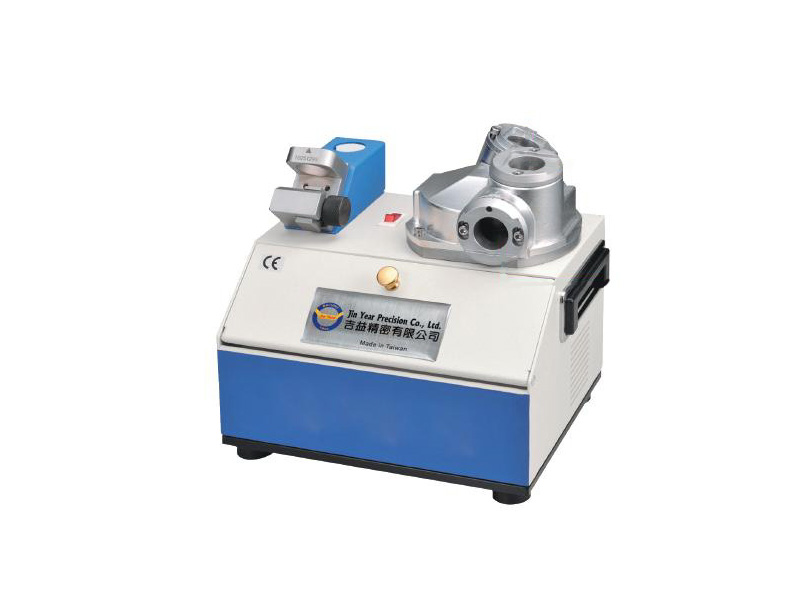

| MODEL |
JE-413 |
JE-1225 |
| Capacity |
4 ~ 13mm |
12 ~ 25 mm |
| Power Supply |
AC-110V, 220V, 60HZ |
AC-110V, 220V , 60HZ |
| Motor/ Speed |
450W／6000rpm |
1000W／4500rpm |
| Diamond Wheel |
| SDC300#(4~5mm. carbide end mill) |
| SDC300#(6~13mm. carbide end mill) |
|
| SDC150#(12~25mm. carbide end mill) |
| CBN150#(12~25mm, high speed end mill) |
|
| Weight |
17KGS |
30KGS |

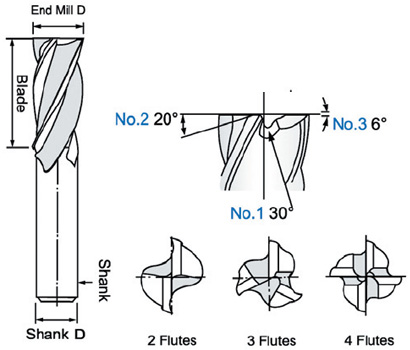

| Axial Angles |
| Third Angle 6° |
Primary Angle 20° |
Second Angle 30° |
|
| Standard Accessories |
| Collet：4 ~13mm (10 pcs) |
| Holder：(2, 4)*1 set、(3)*1 set |
| Hexagon Wrench：4mm*1pcs |
|
| Collet：12, 16, 18, 20, 22, 25mm (6 pcs) |
| Holder：(2, 4)*1 set、(3)*1 set |
| Hexagon：4mm*1pcs |
|
| Option Accessories |
| Diamond Wheel： |
| CBN 300#(4~5mm, high speed end mill) |
| CBN 270#(6~13mm, high speed end mill) 2 flutes |
| CBN 270#(4~13mm, high speed end mill) 2 flutes |
| SDC 300#(4~13mm. carbide end mill) 2 flutes |
|
| Diamond Wheel： |
| CBN 150#(12~25mm, high speed end mill)2 flutes |
| SDC 150#(12~25mm. carbide end mill)2 flutes |
| |
| |
|
