Vertical Turret Milling Machine
Vertical Turret Milling Machine

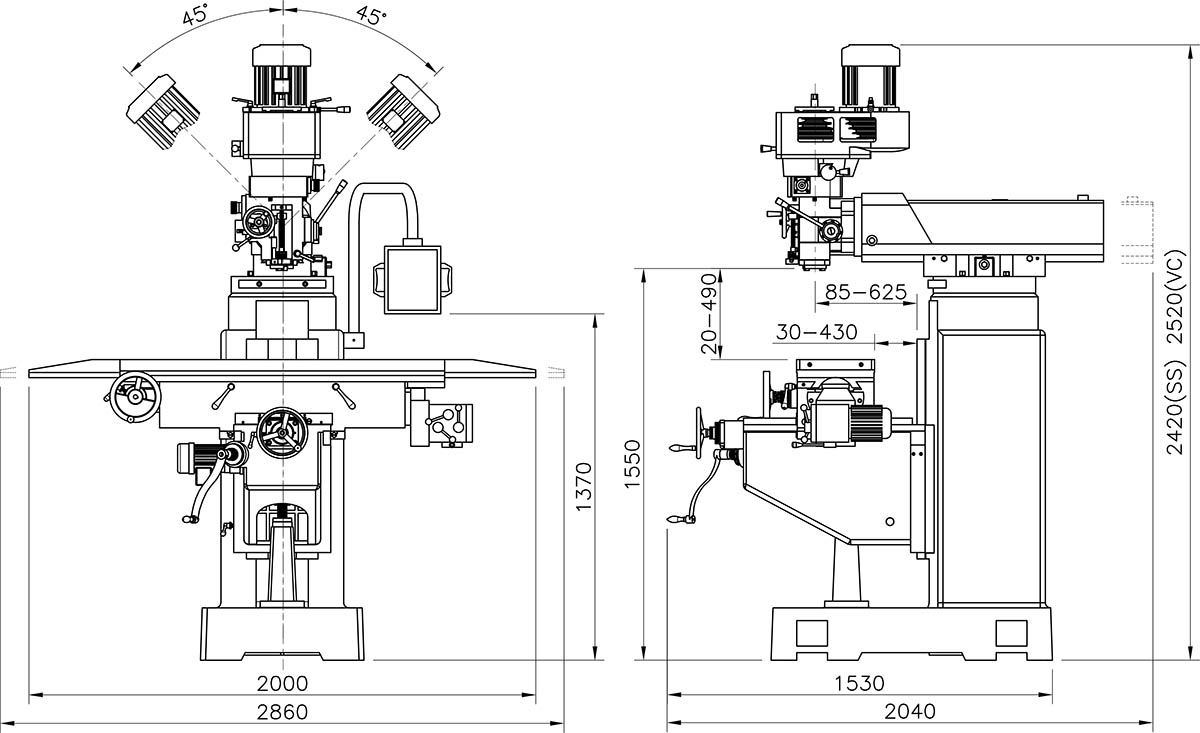

YSM-860 SERIES
X/Y/Z travel : 860(Opt.1000)/426/470mm
Spindle taper : NT40(Ø105)
Spindle motor : 5HP
Hardened ground-X/Y/Z
Square way-Y/Z
Specification
- The main casting part is made of meehanite casting.
- The spindle is one piece machined from SCM440 alloysteel, thermal refining, high-frequency and precision polishing.
- Milling head type:
-Steps (S) Inverter (C)
| 10 Steps | ||
| 60HZ | 70-125-190-285-420-600-1025-1530-2200-3350(RPM) | |
| 50HZ | 58-110-165-240-360-500-870-1290-1900-2780 (RPM) | |
| 20 Steps | ||
| 50HZ | 2P | 116-220-330-480-720-1000-1740-2580-3800-5560(RPM) |
| 4P | 58-110-165-240-360-500-870-1290-1900-2780 (RPM) | |
-Inverter type used YASKAWA VFD.
- Maximum spindle speed up to 5560rpm/50HZ
- Used type B belt drive.
- Hardened and ground X,Y,Z axes slideway.
- Turcite-B coated on X Y ways.
- Square way design on Y and column slideway.
- X/Y axis are using precision ball screw.
