Vertical & Horizontal Milling Machine
Vertical & Horizontal Milling Machine

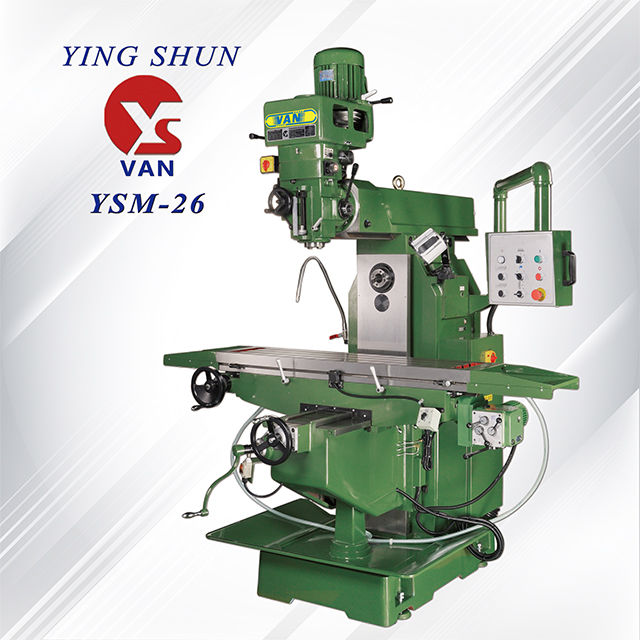

YSM-26 SERIES
X/Y/Z travel : 1000(Opt.800)/400/470 mm
Spindle taper : NT40(Ø105)
Spindle motor : 5HP(Opt.7.5)
Specification
- The main casting part is made of meehanite casting.
- The spindle run on high precision P4 class bearing.
- The spindle is one piece machined from SCM440 alloysteel, thermal refining, high-frequency and precision polishing.
- Milling head type:
-Steps (S) Inverter (C)
| 10 Steps | ||
| 60HZ | 70-125-190-285-420-600-1025-1530-2200-3350(RPM) | |
| 50HZ | 58-110-165-240-360-500-870-1290-1900-2780 (RPM) | |
| 20 Steps | ||
| 50HZ | 2P | 116-220-330-480-720-1000-1740-2580-3800-5560(RPM) |
| 4P | 58-110-165-240-360-500-870-1290-1900-2780 (RPM) | |
-Inverter type used YASKAWA VFD.
- Used type B belt drive.
- Hardened and ground X,Y,Z axes slideway.
- Turcite-B coated on X Y ways.
- Square way design on Y and column slideway.
- X/Y axis double nut ball screw.
- Horizontal milling gear mechianism, maximum speed 1288/50HZ.
| 9 Steps | ||
| 60HZ | 92-204-241-251-536-590-660-1311-1614(RPM) | |
| 50HZ | 73-163-193-201-428-471-527-1056-1288(RPM) | |
- Horizontal bracket.
