Specification

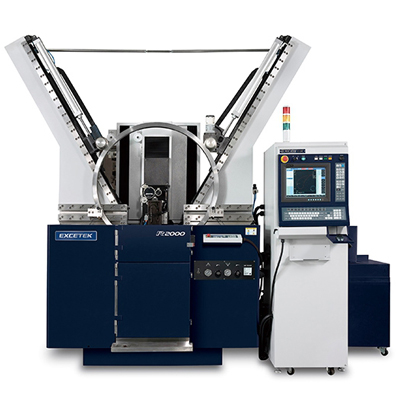

| SPECIFICATIONS | R2000 |
| Max.Work piece Size | Ring Outside Diameter between 600mm∼2200mm, Thickness Below 150mm |
| Max.work piece Weight | 300kg |
| Table Travel of XY | 200*300mm |
| U&V Axis Travel | 80*80mm |
| Z Axis Travel | 220mm |
| Wire Diameter | 0.15-0.3mm |
| Number of axes controlled | 5 Axis AC servo motor |
| Maximum Taper Angle | ±20°/100mm (Wide diamond guide and nozzle) |
| Machine Dimensions | 3450*2900*3200mm |
| Machine Weight | 5400kg |
| Tank Capacity | 800L |
| Paper Filter | 2/pcs |
| Deionizer | AUTO |
| Chiller Unit | AUTO |
