Wire-Cut EDM
NP Series-NP600L CE
NP600L CE
Comply with TUV CE comformity, both safety and desired design with easy operation.
Power slider door design to save installation space and light operation.
Specification
pecification
NP600L
(Submerged Type)
Max. work piece size: 1000 x 700 x 345 mm
Wire diameter: 0.15 - 0.3 mm
Max. work piece weight: 800 kg
Number of axes controlled: XY Axis Linear motor, UVZ Axis AC servo motor
Table travel of X Y: 600 x 400 mm
Maximum taper angle: ±30°/ 100mm with wide diamond guide and nozzle
U & V axis travel: 160 x 160 mm

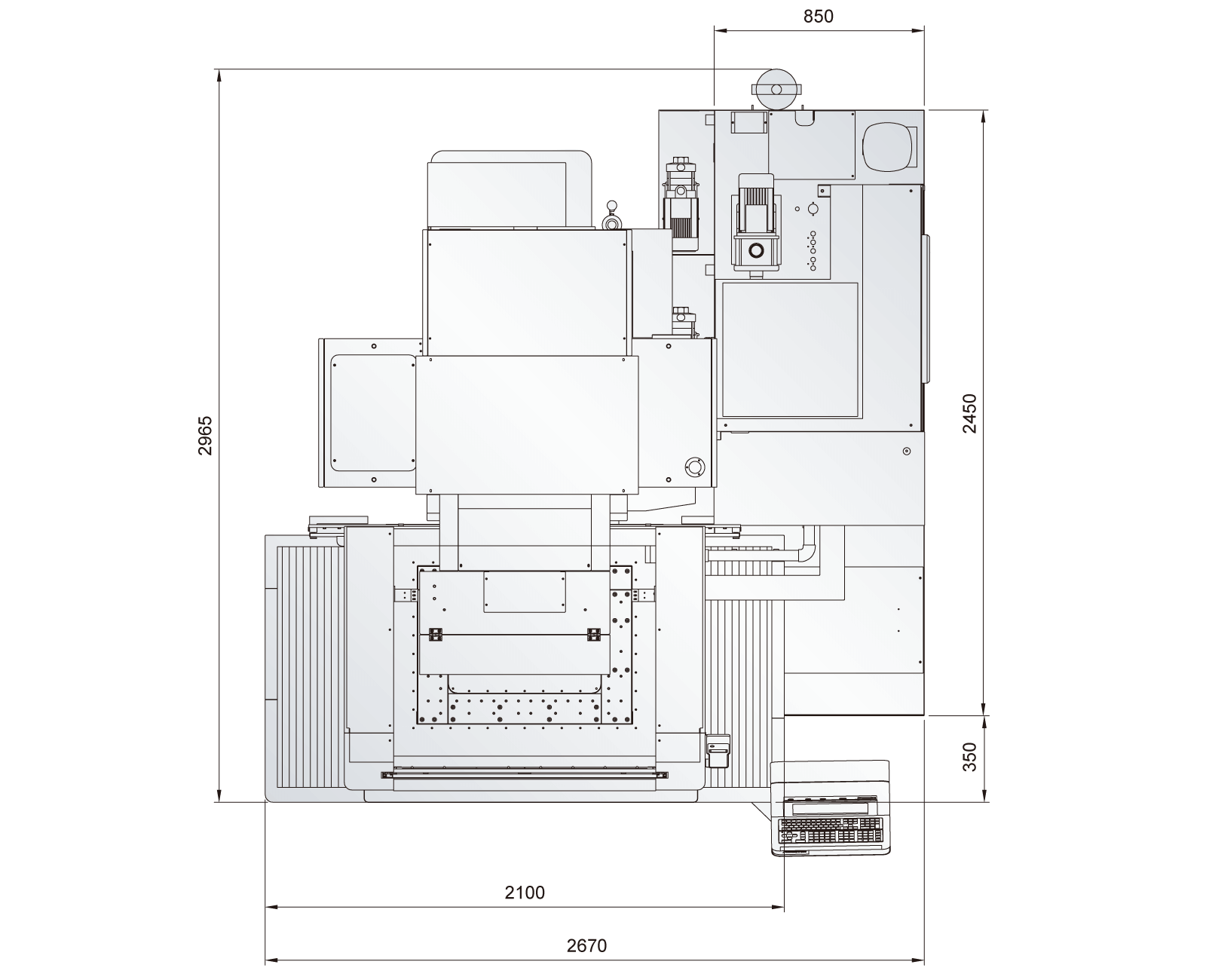

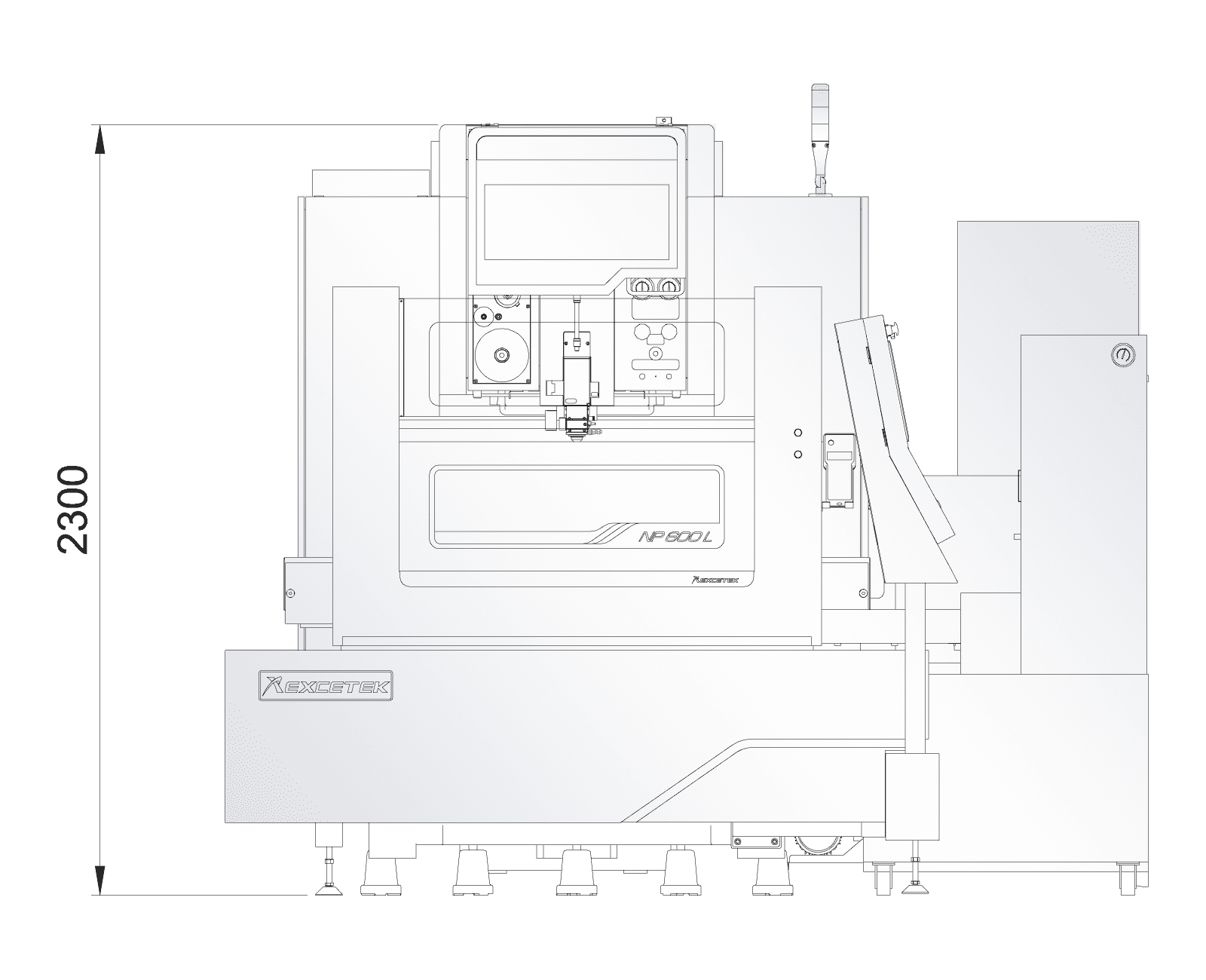

Machine dimensions: 2670 x 2965 x 2300 mm
Z axis travel: 410 mm (option)
Machine weight: 4700 kg
Dielectric Tank
Tank capacity: 900 L
Deionzer: auto
Paper filter: 2 / pcs
Chiller unit: auto
Standard Accessories
- XY axis linear scale
- Brass wire x 1 spool
- AWT
- Clamping tool x 1 set
- Ion exchange resin x 10L
- Vertical alignment jig x 1 set
- Paper filter x 2 pcs
- Diamond guide x 2 pcs
- Upper and lower flushing nozzle x 2 sets
- Energizing plates x 2 pcs
Options
- Clamping Beam
- W-Axis
- AVR 15KVA
- Jumbo Feeder L-50A
- Transformer 15KVA
- Auto Front Door (Only NP600L)
- Short Message Service (SMS)
- Signal Tower
- Remote Monitor System
- Auto measurement system
- Super Finish Circuit
