4-Axis CNC Rotary Table Pneumatic Brake
SUAC-125
SUAC
Table diameter provides a choice of Ø125mm.
Employs high rigidity, extra large radial and axial bearing.
Equipped with special labyrinth type multi-piece disk brake that provides multi-surface braking. Big area design effectively increases clamping force. The table structure eliminates table surface floating problem.
Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
Various sheet metal guards are available to suit various brands of motors. Contact us for detail.

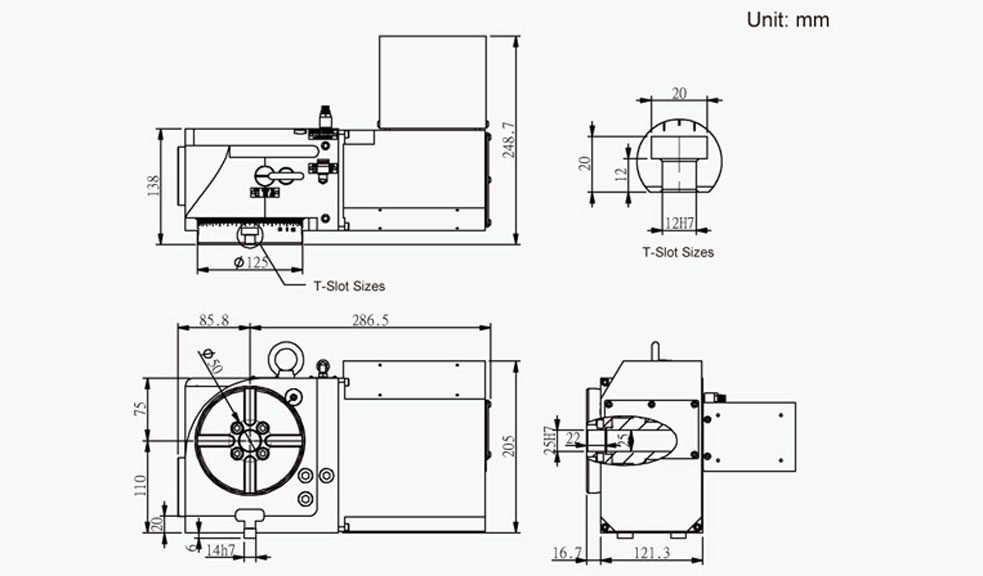

Specification
| MODEL | UNIT | SUAC-125 | ||
|---|---|---|---|---|
| Table diameter | mm | Ø125 | ||
| Center hole diameter | mm | Ø25H7 | ||
| Through-hole diameter | mm | Ø25 | ||
| Height of center (Vertical) | mm | 110 | ||
| Height of table (Horizontal) | mm | 138 | ||
| T-slot width of table | mm | 12H7 | ||
| Width of guide block | mm | 14h7 | ||
| Min. increment | deg. | 0.001 | ||
| Indexing accuracy | sec. | 40 | ||
| Repeatability | sec. | 4 | ||
| Clamping torque | Air 5~7kg/cm² | N.m | 80 | |
| Hyd. 20~30kg/cm² | N.m | - | ||
| Servo motor model | FANUC | - | α2i / ß4is | |
| Mitsubishi | - | HF-75/HF-105S | ||
| Teeth ratio | - | 1 : 48 | ||
| Max.table speed(FANUC a motor) | rpm | 83.3 | ||
| Allowable load capacity | Vertical | kg | 40 | |
| Horizontal | kg | 90 | ||
| With tailstock | kg | 100 | ||
| Allowable cutting force(Clamped status) | F | N | 9000 | |
| FxL | N.m | 400 | ||
| FxL | N.m | 80 | ||
| Allowable torque of worm gear | N.m | 85 | ||
| Allowable inertia | J=W.D²/8 | kg.m² | 0.14 | |
| Weight (Motor excluded) | kg | 27 | ||
