Table diameter provides a choice of Ø255mm.

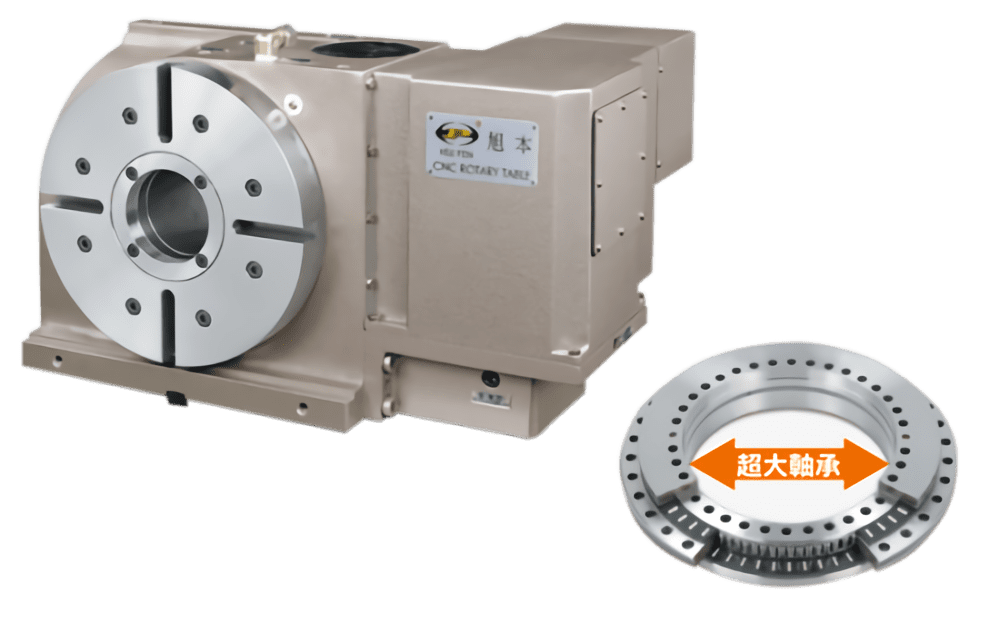

Employs high rig idity, extra large radial and axial bearing.
Upon request, models with table diameter of Ø255, Ø320 and Ø400mm can be equipped with Japanese made worm/worm gear.
Designed with the new full circumference brake that features even braking force without run-out. High torque, easy lubrication as well as compact, rigid and enclosed structure ensure high cutting quality.
Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
Various sheet metal guards are available to suit various brands of motors. Contact us for detail.

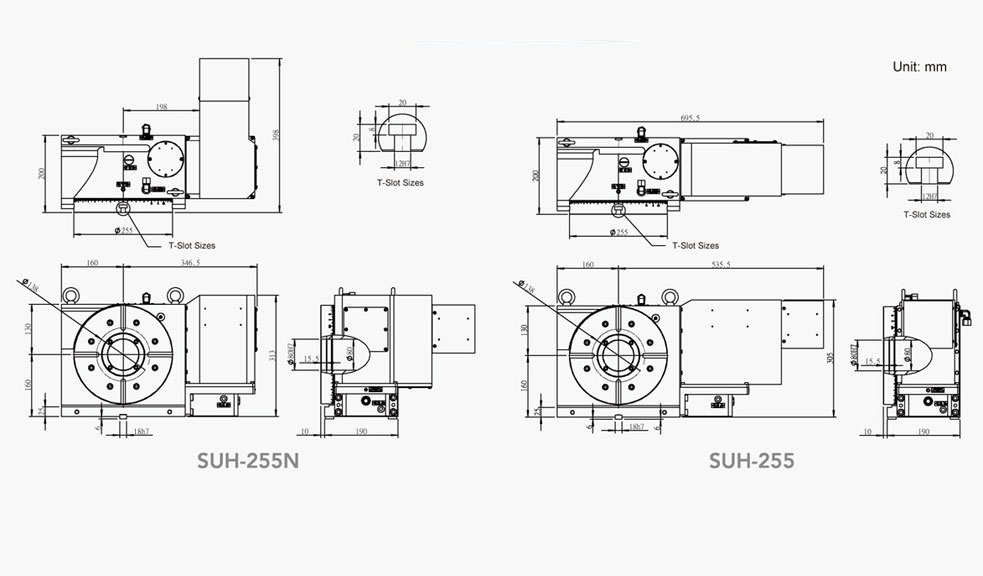

| MODEL | UNIT | SUH-255 | ||
|---|---|---|---|---|
| Table diameter | mm | Ø255 | ||
| Center hole diameter | mm | Ø80H7 | ||
| Through-hole diameter | mm | Large holeØ80 | ||
| Height of center(Vertical) | mm | 160 | ||
| Height of f table (Horizontal) | mm | 200 | ||
| T-slot width of table | mm | 12H7 | ||
| Width of guide block | mm | 18h7 | ||
| Min. increment | deg. | 0.001 | ||
| Indexing accuracy | sec. | 15 | ||
| Repeatability | sec. | 4 | ||
| Clamping method | Hyd. pressure | kg/cm² | 35 | |
| Clamping torque | N.m | 600 | ||
| Servo motor model | FANUC | - | α4i / ß8is | |
| Mitsubishi | - | HF-154S | ||
| Teeth ratio | - | 1 : 120 | ||
| Max.table speed(FANUC a motor) | rpm | 33.3 | ||
| Allowable load capacity | Vertical | kg | 110 | |
| Horizontal | kg | 260 | ||
| With tail stock | kg | 260 | ||
| Allowable cutting force(Clamped status) | F | N | 20000 | |
| FxL | N.m | 1120 | ||
| FxL | N.m | 700 | ||
| Allowable torque of worm gear | N.m | 550 | ||
| Allowable inertia | J=W.D²/8 | kg.m² | 2.07 | |
| Weight (Motor excluded) | kg | 108 | ||
