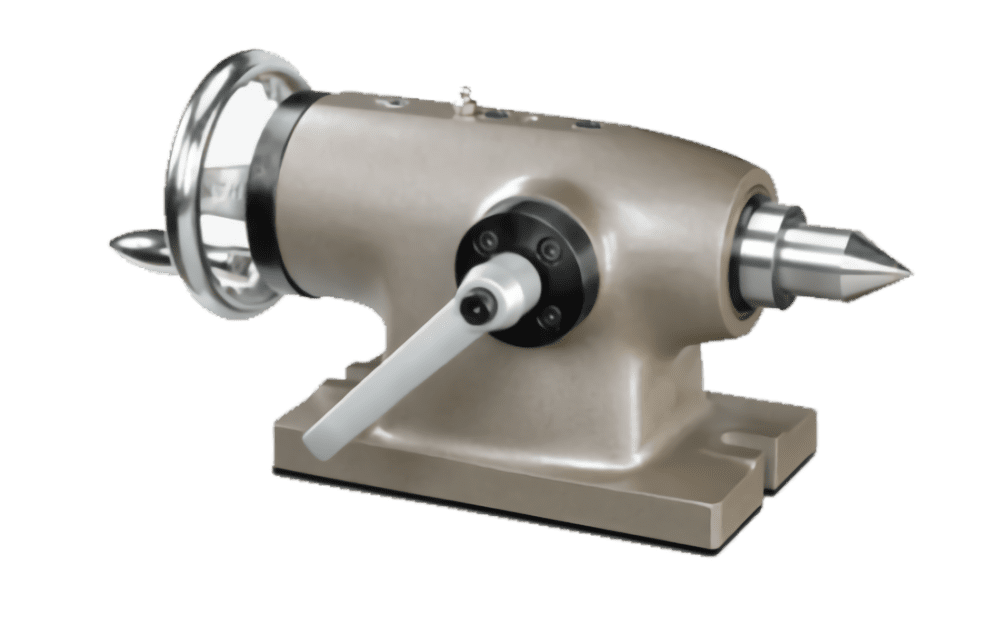

Center Tailstock
SUTT
SUTT
The tailstock is ruggedly contructed for high rigidity.
For models over 125, #MT4 center is used. #400 MT5.
The mini type 125S is suitable for small type machine tools for light cutting applications.

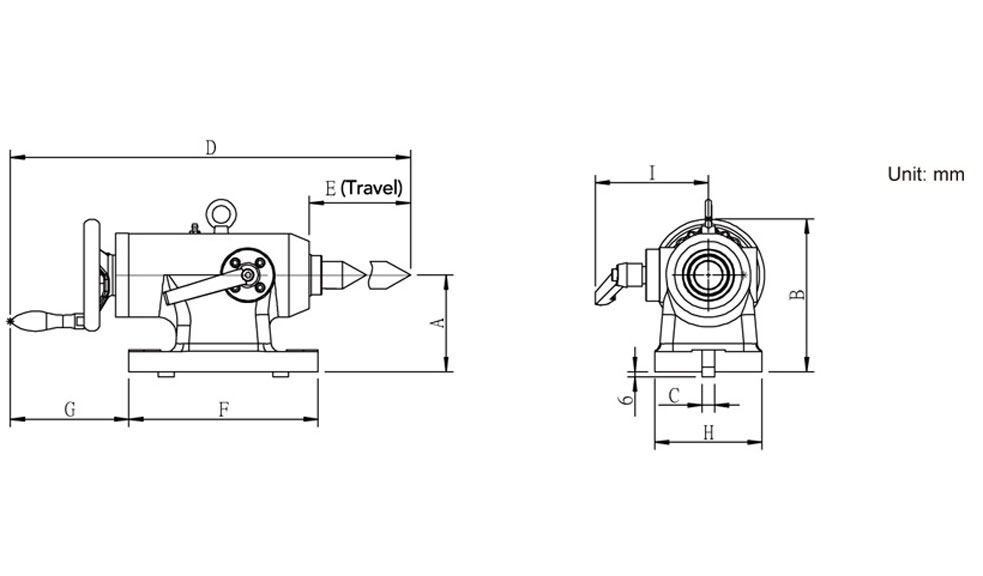

Specification
| Model/Specif. | A | B | C | D | E | F | C | H | I | Center(Morse) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUTT-125S | 110 | 140.5 | 14 | 294/324 | 30 | 140 | 137.5 | 80 | 105.5 | #MT2 | ||||||||||
| SUTT-125 | 110 | 157 | 14 | 405/455 | 50 | 215 | 134.5 | 122 | 128 | #MT4 | ||||||||||
| SUTT-170 | 135 | 182 | 18 | 405/455 | 50 | 215 | 134.5 | 122 | 128 | #MT4 | ||||||||||
| SUTT-210 | 160 | 207 | 14 | 405/455 | 50 | 215 | 134.5 | 122 | 128 | #MT4 | ||||||||||
| SUTT-255 | 160 | 207 | 14 | 405/455 | 50 | 215 | 134.5 | 122 | 128 | #MT4 | ||||||||||
| SUTT-320 | 210 | 257 | 18 | 405/455 | 50 | 215 | 134.5 | 122 | 128 | #MT4 | ||||||||||
| SUTT-400 | 255 | 302 | 18 | 461/521 | 60 | 270 | 134.5 | 160 | 141 | #MT5 | ||||||||||
