Bliss Yih is a professional manufacturer of flexible conduit connectors. Our flexible conduit connectors are also UL and cULus listed, and offer best performance with our flexible conduits such as UL listed A2066 and CSA listed A2167. We offer various flexible conduit connectors, such as straight conduit connectors, 45 degree conduit connectors and 90 degree conduit connectors. Also, we are capable of producing conduit connectors with different thread types. For the thread types, please see Appendix 5: Thread Data.
Features:
* Malleable iron or ductile cast iron, zinc plated.
* For liquid-tight flexible steel conduit.
* NPT thread
* Straight type B2101, 45 degree type N2101 are available.

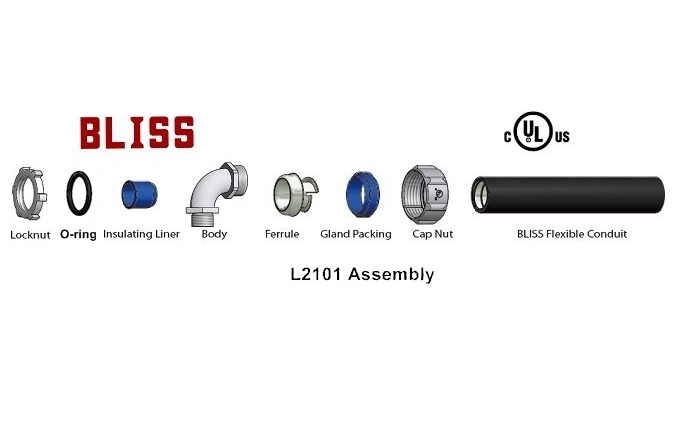

* Furnished with locknut, O-ring and insulating liner.
* According to NEC 350.6, LFMC and associated fittings shall be
listed. Applicable to hazardous (classified) location Class 1
Division 2; Class 2 Division 1,2; Class 3 Division 1,2.
* IP67. UL liquid tight flexible metal conduit A2066, R2066,
S2066.
* RoHS & REACH compliant.
|
Certificate:
- UL/cULus certification - file no. E136208
Applicable Standards:
1. UL 514B
2. CSA Standard: C22.2 No.18.3
3. ANSI/NEMA FB1
4. NMX-J-017-ANCE
5. ANSI/NFPA 70 NEC Article 350
