Cable Strain Relief Flexible Connectors
90° Nylon Cable Gland - PF Thread
L7439
Suitable for type N2017 nylon flexible conduit.
Brand: VONYE
Features:
* Polyamide 6(PA6) (Nylon 6), meets UL 94 V2.
* PF thread
* Light
* Weather resistant.
* Temperature range: -10°C~+120°C.
* IP67.
* Color: black, gray
* RoHS & REACH compliant

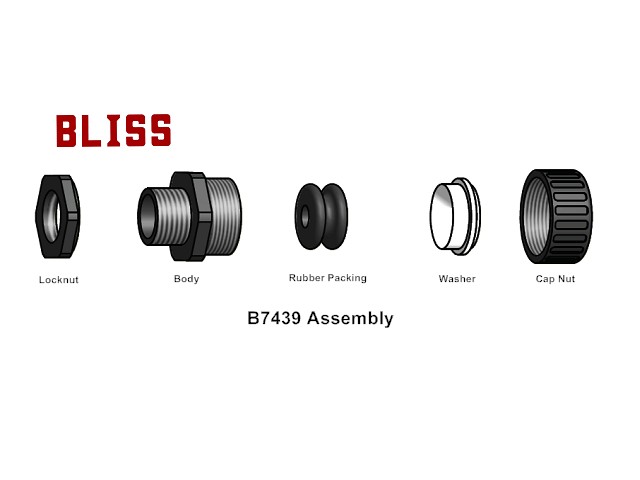

* Straight type B7439 is available.

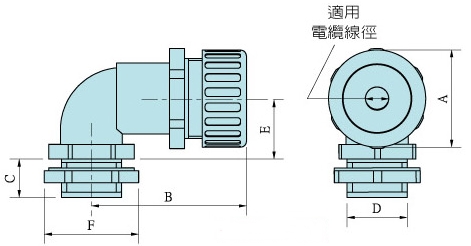

Specification
| Catalog number Black |
Catalog number Grey |
Trade size (inch) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) | Thread | Suitable for cable size (mm) | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L74390306 | L74390306 | 3/8" | 28.0 | 44.0 | 13.0 | 21.0 | 20.0 | 32.0 | PF 1/2 | 6 -8 | 50 |
| L74390309 | L75390309 | 3/8" | 28.0 | 44.0 | 13.0 | 21.0 | 20.0 | 32.0 | PF 1/2 | 9 -12 | 50 |
| L74390312 | L74390312 | 3/8" | 28.0 | 44.0 | 13.0 | 21.0 | 20.0 | 32.0 | PF 1/2 | 12 - 15 | 50 |
| L74390615 | L75390615 | 3/4" | 39.0 | 52.0 | 13.0 | 26.4 | 25.0 | 40.0 | PF 3/4 | 15 -18 | 25 |
